Compact motor 3EC100L2D
induction3-phase400 V

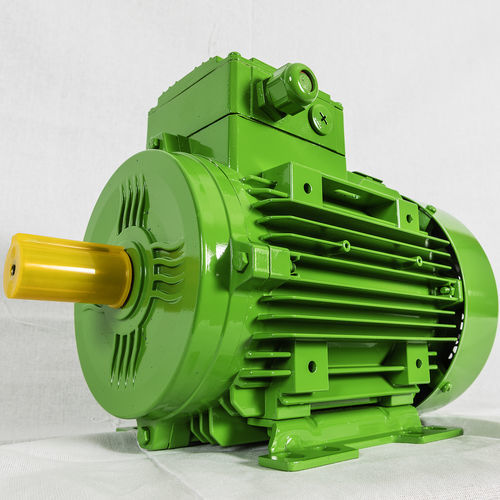

Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V - image - 2
Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V - image - 3
Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V - image - 4
Compact motor - 3EC100L2D - ELK Motor - induction / 3-phase / 400 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 690 V
Configuration
aluminium, squirrel cage, compact
Protection class
IP55
Efficiency classes
IE3
Number of poles
2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency
Power

4 kW
(5.44 hp)

Intensity

4.35 A, 7.53 A

Torque

13.2 Nm
(9.73582 ft.lb)

Rotational speed

2,900 rpm
(18,221.2374 rad.min-1)

Diameter

193 mm
(7.6 in)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 100 Frequency 50 Hz Moment of Inertia 0.00503 kg.m² Load 4/4 3/4 1/2 Efficiency 88.1 % 88.1 % 88.1 % Power Factor 0.87 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 66 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor Direction of Rotation Clockwise Motor Weight 25.4 kg Bearings DS (6206 ZZ) NS (6206 ZZ)
