Compact motor 3EC160L series
induction3-phase400 V

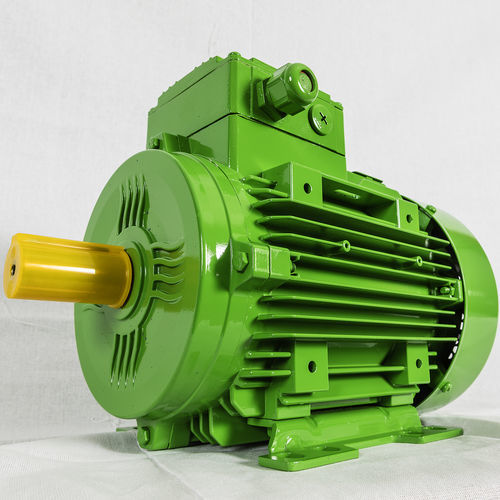

Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V - image - 2
Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V - image - 3
Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V - image - 4
Compact motor - 3EC160L series - ELK Motor - induction / 3-phase / 400 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 690 V
Configuration
aluminium, squirrel cage, compact
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency
Power

18.5 kW, 22 kW
(25.15 hp, 29.91 hp)

Intensity

20.7 A, 22 A, 35.8 A, 38.1 A

Torque

71.5 Nm, 121 Nm
(52.735694 ft.lb, 89.24502 ft.lb)

Rotational speed

1,465 rpm, 2,940 rpm
(9,204.8665 rad.min-1, 18,472.5648 rad.min-1)

Diameter

316 mm
(12.44 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 160 Frequency 50 Hz Moment of Inertia 0.04710 kg.m² Load 4/4 3/4 1/2 Efficiency 92.7 % 92.7 % 92.7 % Power Factor 0.90 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 70 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor Direction of Rotation Clockwise Motor Weight 114 kg Bearings DS (6309 ZZ) NS (6209 ZZ)
