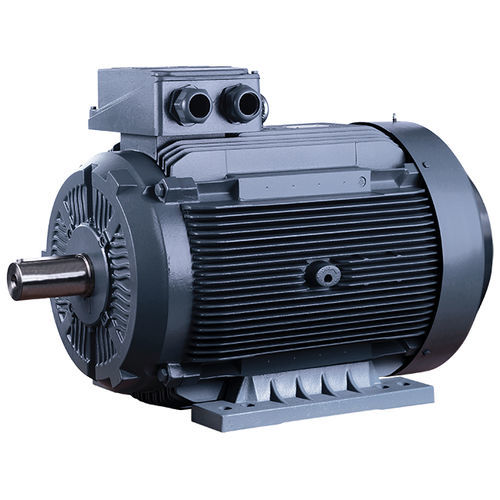

Compact motor 3ED180 seriesinduction3-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 690 V
- Configuration
- cast iron, squirrel cage, compact
- Protection class
- IP55
- Efficiency classes
- IE3
- Number of poles
- 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
30 kW
(40.79 hp)- Intensity
29.4 A, 32.6 A, 51 A, 56.4 A
- Torque
96.9 Nm, 195 Nm
(71.469772 ft.lb, 143.824619 ft.lb)- Rotational speed
1,470 rpm, 2,955 rpm
(9,236.2824 rad.min-1, 18,566.8126 rad.min-1)- Diameter
348 mm
(13.7 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 180
Frequency 50 Hz
Moment of Inertia 0.08800 kg.m²
Load 4/4 3/4 1/2
Efficiency 93.3 % 93.3 % 93.3 %
Power Factor 0.91
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 74 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor
Direction of Rotation Clockwise
Motor Weight 197 kg
Bearings DS (6310 ZZ) NS (6210 ZZ)
