Multitouch screen panel PC EM-P10A

touch screencapacitive touch screen10.1"

Overview

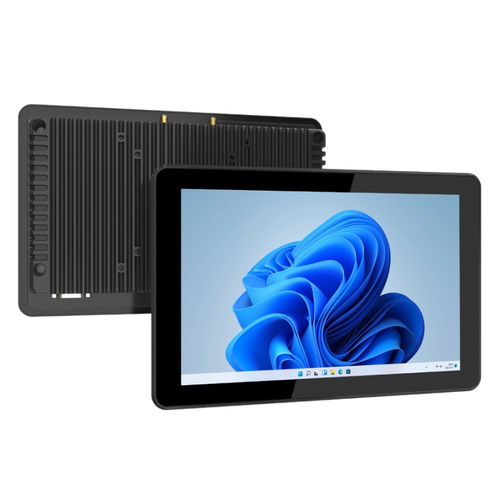

The Emdoor EM-P10A is a 10.1-inch industrial panel PC designed for continuous HMI and control applications. Equipped with an Intel® Core™ i5-1235U processor and Windows 11, the fanless thermal design and IP65 front protect the device for use in industrial environments.

Key specifications

• Model: EM-P10A
• CPU: Intel® Core™ i5-1235U
• Display: 10.1" HD (800 × 1280), 700 nits
• Touch: 10-point capacitive touchscreen
• Memory: 16GB LPDDR4x onboard
• Storage: 128GB SATA SSD (optional 256GB / 512GB PCIe SSD)
• Front panel protection: IP65
• Operating System: Windows 11 Pro (optional Home/IoT)

Basic parameters

• Dimensions: 257.2 × 170 × 45.95 mm
• Weight: approx. 1216 g
• Color: Black
• Camera: Not provided
• Power adapter: 100–240V (19V/3.42A); DC input 5.5 mm jack (supports 12–24V)

Wireless Communications

• Wi‑Fi: Intel® Wi‑Fi 6 (802.11ax)
• Bluetooth: Bluetooth® 5.2
• Cellular: Optional 4G LTE (compatible bands: LTE‑FDD B1/3/5/7/8/20; LTE‑TDD B40; WCDMA B1/5/8; GSM 900/1800)
• GNSS: optional

Performance parameters

• CPU details: Intel® Core™ i5-1235U (12MB cache, up to 4.4 GHz, 10 cores / 12 threads, TDP 15W)
• GPU: Intel® Iris® Xe Graphics (integrated)
• Memory & storage options: 16GB LPDDR4x onboard; 128GB SATA SSD standard; optional 256GB / 512GB PCIe SSD

Battery Performance

• Battery: not applicable / not provided

Data collection

• NFC: No
• 1D / 2D scanning: No
• Fingerprint: No

Product reliability

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: up to 95% non-condensing
• Drop resistance: 1.22 m
• ESD protection: ±8 kV contact; ±15 kV air
• Wide voltage input: supports 12–24V DC

I/O & Connectivity (detailed)

• USB: 4 × USB 3.0 Type-A
• Ethernet: 2 × Gigabit RJ45
• Serial: 2 × RS232 (D-sub 9-pin); optional RS232 + RS485
• Video: HDMI 2.0 Type-A
• Audio: 2 × 3.5 mm jacks
• SIM card slot ×1
• SMA connectors: ×2 (optional ×3)
• DC input: 5.5 mm jack (12–24V)

Installation & Deployment

• Supports embedded installation and wall-mounted deployment
• Rear-side mounting supports 75 × 75 mm and 100 × 100 mm VESA patterns
• Compact fanless design for integration into control cabinets and HMI terminals

Accessories

• 12V/4A adapter (standard)
• Antenna (standard)
• PPC hook assembly (standard)

Technical specifications

• TPM 2.0 hardware security
• Brightness: 700 nits
• Resolution: 800 × 1280 (HD)
• Dimensions & weight: 257.2 × 170 × 45.95 mm; ~1216 g
• Operating system: Windows 11 Pro (optional Home/IoT)
