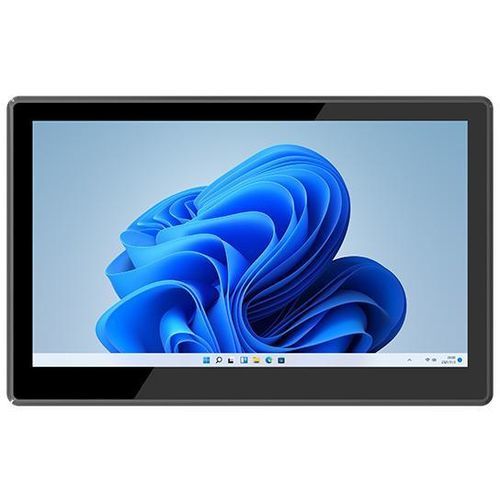

Widescreen panel PC EM-P15A

capacitive touch screenmultitouch screenLCD

Overview The 15.6-inch industrial panel PC EM-P15A is a fanless unit designed for continuous 24/7 operation in industrial environments. It is powered by an Intel Core i5-1235U and ships with Windows 11 Pro. The device features IP65 front protection and is engineered to resist electromagnetic interference and static for reliable on-site use.

Key features

• Processor: Intel Core i5-1235U
• Graphics: Intel® Iris® Xe Graphics support
• Operating System: Windows 11 Pro
• Display: 15.6-inch LCD, 16:9, Full HD 1920×1080, 220 nits
• Touch: 10-point PCAP touchscreen
• Fanless thermal design for continuous operation
• IP65-rated front panel for dust and water protection
• Resistance to electromagnetic interference and static

Basic parameters

• Model: EM-P15A
• Dimensions: 388.63 × 248.43 × 54.95 mm
• Weight: 2.4 kg
• Color: Black
• Display: 15.6-inch LCD, 16:9, 1920×1080, 220 nits
• Touchscreen: 10-point PCAP
• Camera: Not equipped
• I/O: USB 3.0 Type-A ×4; DC 19V input ×1; Earphone jack ×1; RJ45 ×2; DB9 RS232 ×2 (configurable via jumper to RS485 ×1/RS232 ×1); HDMI ×1; M.2 2280 slot (supports SATAIII/PCIe3.0x4)
• Power adapter: AC 100–240V 50/60Hz → DC 19V/3.42A

Wireless Communications

• Wi‑Fi: 802.11 a/b/g/n/ac/ax (2.4G + 5G), WiFi 6 supported
• Bluetooth: Bluetooth 5.1
• Cellular: Optional 2G/3G/4G modules
• GNSS: Not equipped

Performance parameters

• CPU: Intel Core i5-1235U
• GPU: Intel® Iris® Xe Graphics support
• Operating system: Windows 11 Pro
• Memory: 8 GB (standard)
• Storage: 128 GB (supports M.2 2280 SATAIII/PCIe3.0x4)

Battery and data collection

• Battery: Not equipped
• NFC: No
• 1D scanner: No
• 2D scanner: No
• Fingerprint reader: No

Product reliability

• Operating temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Humidity: Up to 95% non-condensing
• Protection: IP65 front panel
• Drop resistance: 1.22 m

Technical specifications

• Model: EM-P15A
• Display: 15.6" 16:9, 1920×1080, 220 nits
• Touchscreen: 10-point PCAP
• Processor: Intel Core i5-1235U
• Graphics: Intel® Iris® Xe Graphics support
• Operating System: Windows 11 Pro
• Memory: 8 GB
• Storage: 128 GB (M.2 2280, supports SATAIII/PCIe3.0x4)
• I/O ports: USB3.0 ×4 (Type-A), DC19V input, Earphone jack, RJ45 ×2, DB9 RS232 ×2 (configurable), HDMI ×1, M.2 slot
• Wireless: WiFi 6 (802.11ax), Bluetooth 5.1, optional cellular (2G/3G/4G)
• Dimensions: 388.63 × 248.43 × 54.95 mm
• Weight: 2.4 kg
• Color: Black
• Power adapter: AC100–240V 50/60Hz → DC 19V/3.42A
• Environment: Operating -20 °C to 60 °C; Storage -30 °C to 70 °C; Humidity 95% non-condensing
• Durability: IP65 front panel; 1.22 m drop resistance; fanless design for continuous operation
