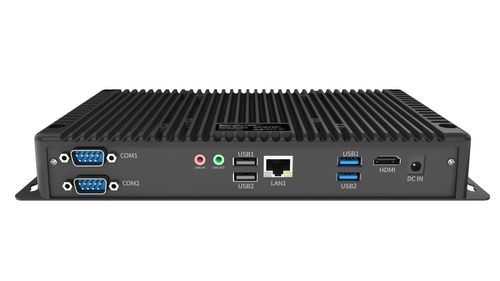

Box PC EM-B10R

VESA mountingwall-mountedembedded

Overview
B10R Industrial embedded BOX PC is a compact, fanless platform powered by the Rockchip RK3568 and running Android 12. Engineered for continuous 24/7 industrial and edge deployment, it provides low-power computing, on-board NPU support, flexible industrial I/O and multiple mounting options (embedded, wall, desktop).

Key highlights

• Rockchip RK3568 SoC: Cortex‑A55 quad‑core up to 2.0 GHz
• Integrated NPU (1 TOPS) and Mali‑G52‑2EE GPU for edge AI and graphics
• Fanless rugged design for dust and vibration tolerance
• Rich I/O: Gigabit Ethernet, RS232/RS485 options, multiple USB, HDMI, dual audio jacks
• Wireless: dual‑band Wi‑Fi 5 and Bluetooth 5.0 standard; optional 4G LTE with multi‑antenna support
• Compact chassis with embedded/wall/desktop mounting and VESA 75×75 & 100×100 support

Summary description
B10R is intended for industrial edge computing tasks such as edge gateway, self‑service kiosks, digital signage and industrial control. Standard configuration: 4 GB LPDDR4x onboard RAM and 64 GB eMMC storage; Micro SD expansion up to 512 GB.

Included basic product pointers

• Model: EM‑B10R
• CPU: RK3568 (Cortex‑A55 quad‑core)
• GPU: Mali‑G52‑2EE
• NPU: 1 TOPS
• OS: Android 12
• RAM: 4 GB LPDDR4x onboard
• Storage: 64 GB eMMC (Micro SD up to 512 GB)

I/O and connectivity (overview)

• Micro SD card slot ×1
• SIM card slot ×1
• USB 3.0 Type‑A ×1
• USB 3.0 OTG Type‑A ×1
• USB 2.0 Type‑A ×2
• 3.5 mm audio jack ×2 (Line In / Out)
• HDMI 2.0 Type‑A ×1
• Gigabit Ethernet (RJ45) ×1
• Serial: RS232 (D‑sub 9‑pin) ×2 (option: RS232 ×1 / RS485 ×1)
• 5.5 mm DC‑in jack ×1 (supports 12–24 V)
• Optional SMA antennas (standard SMA ×2, optional SMA ×3)

Deployment & mechanical

• Fully enclosed fanless chassis for dust and vibration resistance
• Embedded, wall and desktop mounting supported
• VESA mounting: 75 × 75 mm and 100 × 100 mm

Applications

• Industrial edge gateway for equipment, sensors and local processing
• Self‑service kiosks and unattended terminals
• Digital signage and multimedia display control in retail, transport and commercial spaces

Accessories (examples)

• AC adapter (100–240 V, 48 W, 12 V/4 A)
• Mounting hooks / assembly
• Wi‑Fi antenna (standard)
• 4G antenna (optional)

Technical specifications

• Model: EM‑B10R
• CPU: RK3568 (Cortex‑A55 quad‑core, up to 2.0 GHz)
• GPU: Mali‑G52‑2EE
• NPU performance: 1 TOPS
• Operating system: Android 12
• Memory: 4 GB LPDDR4x (onboard)
• Storage: 64 GB eMMC; Micro SD up to 512 GB
• Dimensions: 264 mm (L) × 135.2 mm (W) × 37.2 mm (H)
• Weight: 671 g
• Color: Black
• I/O: Micro SD ×1; SIM ×1; USB3.0 ×1; USB3.0 OTG ×1; USB2.0 ×2; 3.5 mm audio ×2; HDMI2.0 ×1; Gigabit Ethernet ×1; RS232 D‑sub 9‑pin ×2 (opt. RS232 ×1 / RS485 ×1); DC‑in 5.5 mm (12–24 V) ×1; SMA ×2 (opt. ×3)
• Power adapter: AC 100–240 V, 50/60 Hz, 48 W (12 V/4 A)
• Wireless: Wi‑Fi 5 (dual‑band), Bluetooth 5.0
• Cellular: Optional 4G LTE
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Humidity: up to 95% (non‑condensing)
• Electrical & reliability: wide‑voltage 12–24 VDC, ESD and surge protection, EMI immunity, multi‑layer electrical protection
• Designed for continuous 24/7 industrial operation
