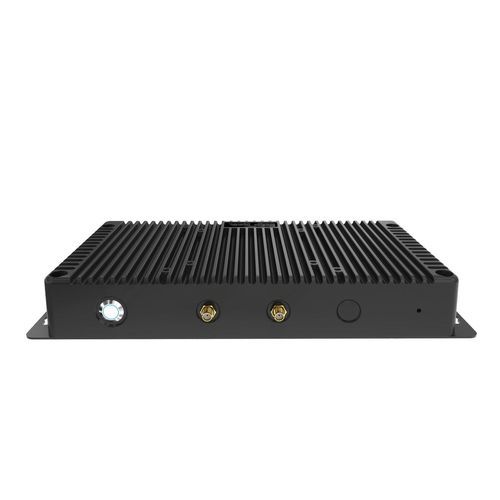

Box PC EM-B10J

embeddedwall-mounteddesktop

Overview The EM-B10J embedded Box PC provides low-power industrial computing based on the Intel® Celeron N5100 (Jasper Lake) and ships with Windows 11 Home (Ubuntu optional). Its fanless, enclosed chassis and wide input voltage make it suitable for continuous 24/7 operations in industrial automation, edge IoT nodes and kiosk applications.

Product summary

• Compact, fanless embedded platform for industrial deployments with flexible mounting options (embedded, wall, desktop).
• Onboard 8 GB LPDDR4x memory and 128 GB M.2 SSD standard; expandable via M.2 SATA/PCIe up to 512 GB.
• Dual Gigabit Ethernet, rich serial I/O and optional cellular connectivity for varied networking scenarios.

Key highlights

• Model: EM-B10J with Intel® Celeron N5100 CPU (up to 2.8 GHz turbo)
• Intel® UHD Graphics
• 8 GB LPDDR4x onboard; 128 GB SSD (M.2) standard
• Fanless rugged design; TPM 2.0 onboard
• 2 × Gigabit RJ45, HDMI 2.0a, 2 × USB 3.0, 2 × USB 2.0, 2 × RS232 (optional RS485)
• Wi‑Fi 5 (dual-band), Bluetooth 5.1; optional 4G LTE (triple-antenna)

Basic parameters

• Dimensions: 264 × 135.2 × 37.2 mm; Weight: 1100 g; Color: Black
• Power: AC adapter 100–240 V or DC input 12–24 V (5.5 mm)
• Operating temp: -20 °C to 60 °C; Storage temp: -30 °C to 70 °C; Humidity: up to 95% non-condensing

I/O & Connectivity

• SIM ×1; USB 3.0 Type‑A ×2; USB 2.0 Type‑A ×2; 3.5 mm audio In/Out ×2; HDMI 2.0a ×1; 2 × RJ45 Gigabit; RS232 ×2 (D‑sub 9‑pin); optional RS232 ×1 / RS485 ×1; SMA antenna connectors (2 standard, 3 optional)
• Wireless: Intel® Wi‑Fi 5, Bluetooth® 5.1; optional 2G/3G/4G LTE

Performance & Storage

• CPU: Intel® N5100 (4 cores / 4 threads)
• GPU: Intel® UHD Graphics
• OS: Windows 11 Home (Ubuntu optional)
• Memory: 8 GB LPDDR4x onboard; Storage: 128 GB SSD standard, expandable via M.2 SATA/PCIe to 256/512 GB

Reliability & Protection

• Enclosed fanless chassis for dust and vibration resistance; multi-layer electrical protections including ESD, surge and OVP
• Designed for continuous industrial operation with TPM 2.0 security

Expansion & Deployment

• M.2 slot for storage expansion; supports up to 512 GB SSD
• Mounting: embedded, wall, desktop; VESA 75 × 75 mm and 100 × 100 mm; includes 4 hook assemblies

Applications

• Edge computing and data collection in smart manufacturing and CNC systems
• Fleet terminals and vehicle gateways (with optional cellular)
• Self-service kiosks, access control and unattended equipment
• IoT edge nodes for industrial automation and medical device integration

Accessories & Technical specifications

• Standard: AC adapter, Wi‑Fi antenna, hook assemblies. Optional: 4G antenna, additional serial modules
• Technical: Model EM-B10J; 4 cores / 4 threads; TPM 2.0; 2 × Gigabit RJ45; HDMI 2.0a; Dimensions 264 × 135.2 × 37.2 mm; Weight 1100 g
