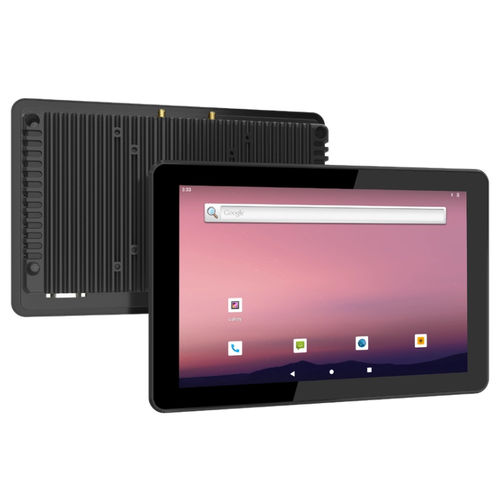

Capacitive touch screen panel PC EM-P10R

multitouch screentouch screen10.1"

Overview
The Emdoor EM-P10R is a 10.1-inch fanless Android 12 panel PC based on the Rockchip RK3568 platform, designed for 24/7 industrial operation. Fanless thermal design, IP65 front protection and ESD/MIL-STD certifications ensure reliable use for HMI, equipment terminals, kiosks and edge computing.

Key features

• Processor: Rockchip RK3568 quad-core ARM, up to 2.0GHz
• Graphics: Mali-G52-2EE
• Operating System: Android 12 (embedded)
• Display: 10.1" HD (800×1280), 700 nits, 10-point capacitive touchscreen
• Memory & Storage: 4GB LPDDR4x onboard, 64GB eMMC, Micro SD expansion slot
• Fanless design, front panel IP65, MIL-STD-810H, ESD protection

I/O & Connectivity

• Micro SD ×1; SIM card ×1
• USB 3.0 Type-A ×1; USB 3.0 OTG Type-A ×1; USB 2.0 Type-A ×2
• HDMI 2.0 Type-A ×1
• Gigabit Ethernet (RJ45) ×1
• Serial: RS232 (D-sub 9-pin) ×2; optional RS232 ×1 / RS485 ×1
• 3.5 mm audio jack ×2
• 5.5 mm DC-in jack (supports 12–24V)
• SMA antenna connectors ×2 (optional ×3)

Wireless & Optional

• Wi‑Fi 5 (802.11ac)
• Bluetooth 5.0
• Optional 2G/3G/4G LTE (SIM slot)
• GNSS: optional

Reliability & Environmental

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: 95% non-condensing
• Front panel protection: IP65
• MIL-STD-810H certification and ESD protection (±8kV contact / ±15kV air)
• Drop resistance: 1.22 m

Typical applications

• Industrial HMI and equipment terminals
• Edge computing and industrial IoT gateways
• Self-service kiosks and interactive terminals
• Smart commercial displays and control panels

Technical specifications

• Brand: Emdoor
• Model: EM-P10R
• CPU: Rockchip RK3568, quad-core up to 2.0GHz
• GPU: Mali-G52-2EE
• OS: Android 12
• Display: 10.1" HD (800×1280), 700 nits
• Touch: 10-point capacitive touchscreen
• Memory: 4GB LPDDR4x onboard
• Storage: 64GB eMMC; Micro SD ×1 (expansion)
• Dimensions: 257.2 × 170 × 45.95 mm
• Weight: 1136 g
• I/O: Micro SD ×1; SIM ×1; USB3.0 ×1; USB3.0 OTG ×1; USB2.0 ×2; HDMI 2.0 ×1; Gigabit RJ45 ×1; RS232 (D-sub 9-pin) ×2; optional RS232+RS485; 3.5mm audio ×2; 5.5mm DC jack (12–24V)
• Power adapter: AC 100–240V, 50/60Hz, 48W (12V/4A)
• Wireless: Wi‑Fi 5, Bluetooth 5.0; optional 4G LTE
• Antennas: SMA ×2 (optional SMA ×3)
• Protection: Front panel IP65; MIL-STD-810H
• Operating temp: -20°C to 60°C; Storage temp: -30°C to 70°C
• Humidity: 95% non-condensing
• ESD: ±8kV contact / ±15kV air
• Drop resistance: 1.22 m
• Mounting: Embedded, wall mount, hook assembly; rear VESA patterns 75×75 mm & 100×100 mm
• Certifications: CE, FCC, CCC (as indicated)
