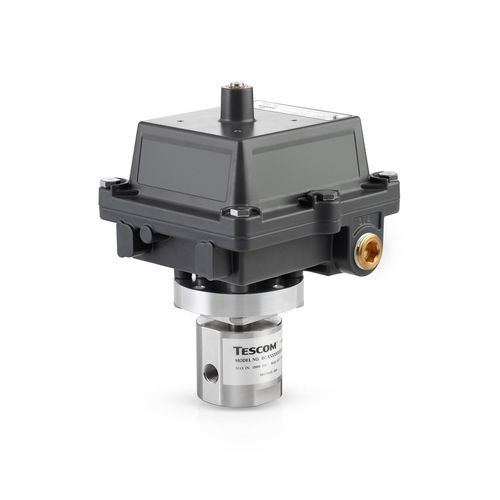

Electric valve TESCOM™ RC-X

flow regulatordosingmetering

Product overview
The TESCOM™ RC-X motorized Injection Rate Control (IRC) valve provides electronic control of chemical injection rates for industrial processes. Designed for precise metering of inhibitors and treatment chemicals, the RC-X operates from a 24 VDC supply and accepts a 4-20 mA control signal to adjust flow between 0.015 and 500 LPH, helping prevent over- or under-injection in critical systems.

Typical applications

• Chemical injection for scale and corrosion control
• Water treatment and conditioning systems
• Oil & gas process lines and offshore installations
• Power generation and industrial process plants

Technical specifications

• Brand: TESCOM
• Series / Model: RC-X
• Power supply: 24 VDC
• Control method: 4-20 mA
• Maximum rated pressure: 15,000 psig
• Flow rate range: 0.015 - 500 LPH
• Flow capacity: Cv = 0.04
• Maximum rated temperature: 70°C / 158°F
• Body material: 316L stainless steel
• Seat material: 316L stainless steel
• Seal material: PTFE
• Port sizes: 1/4 in, 3/8 in (medium pressure)
• Compatible media: scale inhibitor, corrosion inhibitor
• Operating environments: corrosive, hazardous, indoor, outdoor
• Wetted parts rating: NACE STD MR-01-75
• Weight: 11.4 lbs / 5.17 kg

Certifications & compliance

• Explosion-proof rating: IECEx: Ex db IIB T6…T5 Gb
• ATEX: II2G Ex db IIB T6…T5 Gb
• Wetted parts compliant with NACE STD MR-01-75

Ordering & support
Datasheets, certification documents and pricing are available on request. Contact your TESCOM representative or authorized distributor for variant availability, installation guidance and spare parts.
