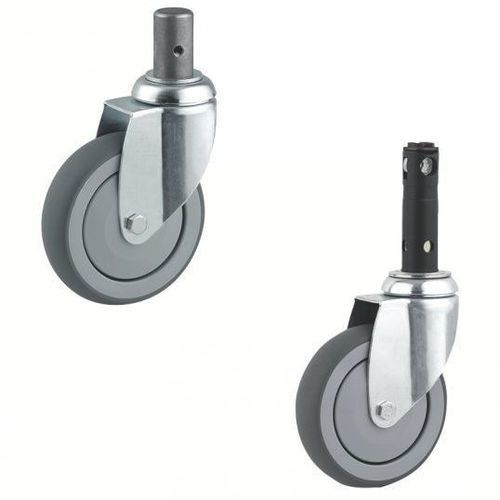

Swivel caster 38-303 series

rodfor medical equipmentwith brake

Definition
A caster is a mechanical component consisting of a wheel mounted in a fork, combined with a fixing system (plate, central hole, stem or sleeve) for installation under equipment. It provides mobility by converting linear movement into wheel rotation, reducing the effort required to move furniture or equipment.

Material

• Stamped zinc-plated steel fork, swivel on double row ball bearings, bolted axle.
• Wheel body in polypropylene.
• Non-marking thermoplastic rubber tread, hardness 87° Shore A.
• Precision ball bearings.

Version

• Fixing type: stem-mounted.
• Available in 3 versions: Without brake, 2-function brake, 3-function brake.

Dimensional range

• Wheel diameter (d1): 125 or 150 mm.
• Tread width (l2): 32 mm.
• Offset (l1): 41 or 45 mm.
• Nominal load: 100 kg.

Use

• Operating temperature: -20 °C to +60 °C.
• Centralized locking possible to lock multiple casters simultaneously via a foot brake.
• 2-function brake: total lock or free.
• 3-function brake: total lock, free and directional lock.
• Cam angle: 45°.
• Designed for stabilization and ease of movement; suitable for nursing home beds and patient beds.

Example order
ORDER EXAMPLE: Reference 38-3031-125

Technical specifications

• Model reference: 38-303.
• Available diameters: 125 mm, 150 mm.
• Tread width: 32 mm.
• Available offsets: 41 mm, 45 mm.
• Maximum load: 100 kg.
• Tread: thermoplastic rubber, hardness 87° Shore A.
• Materials: zinc-plated steel fork, polypropylene wheel body.
• Bearing: precision ball bearings, swivel on double row ball bearings.
• Brake options: without brake / 2-function brake / 3-function brake.
• Operating temperature range: -20 °C to +60 °C.
• Brake cam angle: 45°.
