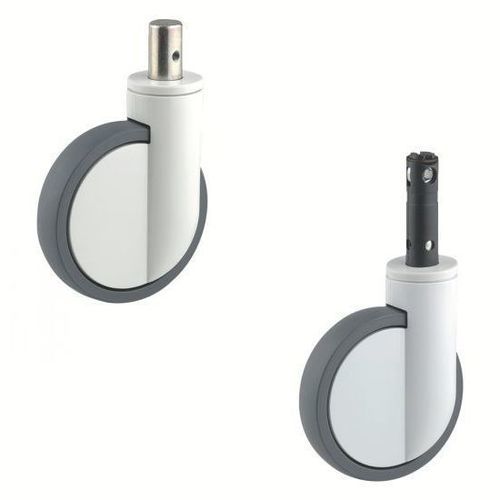

Swivel caster 38-301 series

rodfor medical equipmentwith brake

Definition
A caster is a mechanical component consisting of a wheel mounted in a yoke, combined with a fixing system (plate, central hole, stem or sleeve) that allows mounting under a support. It provides mobility to equipment or loads by transforming translational movement into wheel rotation, reducing the effort required for movement.

Materials

• Yoke in yellow dichromated steel.
• Swivel on precision ball bearings.
• Cover in nylon.
• Wheel core in polyamide.
• Tread in polyurethane, hardness 42° Shore D.
• Precision ball bearings.

Version
Mounting type: stem. Available in 3 versions:

• Without brake.
• With 2-function brake (total lock or free).
• With 3-function brake (total lock, free and directional lock).

Dimensional range

• Wheel diameter (d1): 125 to 200 mm.
• Tread width (l2): 32 or 35 mm.
• Offset (l1): 35 to 60 mm.
• Nominal load: 150 kg.

Use

• Operating temperature: -30 °C to +80 °C.
• Centralized locking possible to lock several casters simultaneously using a single brake pedal.
• 2-function brake: total lock or free.
• 3-function brake: total lock, free and directional lock.
• Cam angle: 45°.
• High mobility and resistance to shocks and rapid movements; suitable for stretchers and hospital beds.

Order example
Reference: 38-3011-125

Characteristics / technical specifications

• Model reference: 38-301.
• Mounting type: stem.
• Available versions: Without brake, 2-function brake, 3-function brake.
• Available diameters: 125 mm, 150 mm, 200 mm.
• Tread widths: 32 mm, 35 mm.
• Available offsets (l1): 35 mm, 40 mm, 60 mm (depending on version).
• Indicative heights (h1): 158 mm, 183 mm, 229 mm (depending on diameter).
• Working load: 150 kg per caster.
• Yoke material: yellow dichromated steel; cover in nylon.
• Wheel material: polyamide; tread polyurethane 42° Shore D.
• Bearings: precision ball bearings.
• Operating temperature: -30 °C to +80 °C.
• Cam angle of the braking system: 45°.
