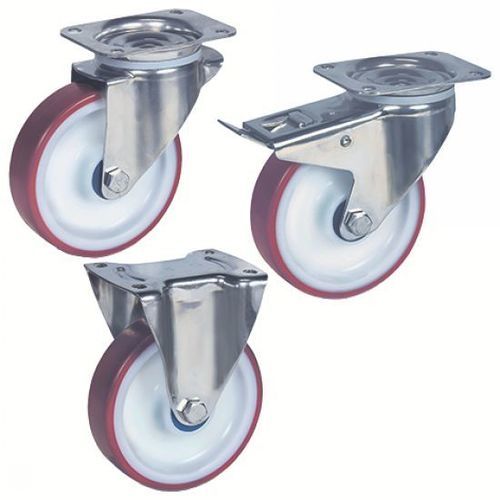

Swivel caster 38-504 series

fixedrodbase plate

Definition
A caster is a mechanical component consisting of a wheel mounted in a bracket, combined with a fixing system (plate, central hole, stem or sleeve) allowing installation under a support. It provides mobility for equipment or loads by converting translational movement into wheel rotation, reducing the effort required to move items.

Materials

• Stainless steel bracket, swivel on double row ball bearings, bolted axle.
• Wheel body in white polyamide.
• Red injected polyurethane tread, 42° Shore D hardness.
• Stainless steel roller bearings.

Versions available

• Fixed, plate-mounted, without brake.
• Swivel, plate-mounted, without brake.
• Swivel, plate-mounted, with rear brake.

Dimensional range

• Wheel diameter (d1): from 100 to 200 mm.
• Tread width (l2): from 32 to 46 mm.
• Offset for swivel casters (l1): from 35 to 57 mm (depending on reference).
• Load capacity: from 150 to 400 kg (depending on reference).

Usage and operating characteristics

• Operating temperature: -40 °C to +80 °C.
• Resistant to abrasion and detergents.
• Compliant with NF Hygiène standard.
• Suitable for laboratory trolleys and kitchen trolleys.

Variants / References (excerpt)
Ref | Version | Brake | d1 (mm) | d2 (mm) | h1 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | l5 (mm) | l6 (mm) | Load (kg)
38-5041-100 | Swivel | Without brake | 100 | 9 | 128 | 35 | 32 | 105 | 85 | 77-80 | 60 | 150
38-5041-125 | Swivel | Without brake | 125 | 9 | 155 | 38 | 32 | 105 | 85 | 77-80 | 60 | 200
38-5041-160 | Swivel | Without brake | 160 | 11 | 200 | 55 | 40 | 135 | 105 | 105 | 75-80 | 350
38-5041-200 | Swivel | Without brake | 200 | 11 | 240 | 52 | 46 | 135 | 105 | 105 | 75-80 | 400
38-5042-100 | Swivel | With rear brake | 100 | 9 | 128 | 39 | 32 | 105 | 85 | 77-80 | 60 | 150
38-5042-125 | Swivel | With rear brake | 125 | 9 | 155 | 39 | 32 | 105 | 85 | 77-80 | 60 | 200
38-5042-160 | Swivel | With rear brake | 160 | 11 | 200 | 57 | 40 | 135 | 105 | 105 | 75-80 | 350
38-5042-200 | Swivel | With rear brake | 200 | 11 | 240 | 57 | 46 | 135 | 105 | 105 | 75-80 | 400
38-5047-100 | Fixed | Without brake | 100 | 9 | 128 | - | 32 | 102 | 87 | 77-80 | 60 | 150
38-5047-125 | Fixed | Without brake | 125 | 9 | 155 | - | 32 | 102 | 87 | 77-80 | 60 | 200
38-5047-160 | Fixed | Without brake | 160 | 11 | 200 | - | 40 | 135 | 114 | 105 | 77-80 | 350
38-5047-200 | Fixed | Without brake | 200 | 11 | 240 | - | 46 | 135 | 114 | 105 | 77-80 | 400

Order example
Reference: 38-5041-100

Associated technical documents
Product datasheet for the range (Wheels and casters) available in PDF format.

Characteristics / Technical specifications

• Series / model: 38-504 series.
• Brand: Emile Maurin
• Materials: stainless steel bracket, polyamide wheel, injected polyurethane tread 42° Shore D, stainless steel bearings.
• Fixing options: plate (main fixing mode presented).
• Versions: swivel without brake, swivel with rear brake, fixed without brake.
• Available diameters: 100, 125, 160, 200 mm.
• Load ranges: 150, 200, 350, 400 kg depending on reference.
• Operating temperature: -40 °C to +80 °C.
• Resistance: abrasion and detergents; compliant with NF Hygiène.
• Detailed references and technical dimensions available per reference (see variants table above).
