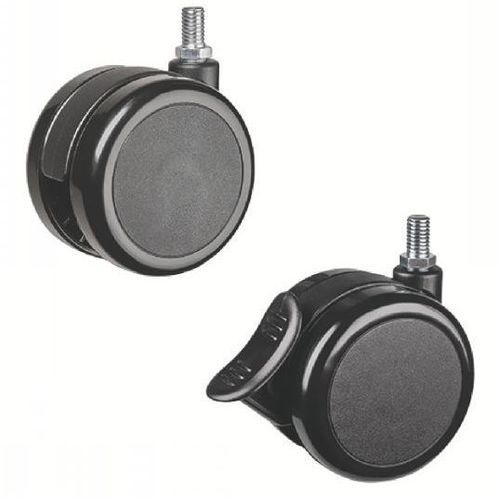

Swivel caster 38-206 series

threaded studfor furniturewith brake

Definition
A caster is a mechanical component composed of a wheel mounted in a bracket, combined with a fixing system (threaded stem) to attach it under a support. It provides mobility for equipment or loads by converting translational movement into wheel rotation, reducing handling effort.

Materials

• Bracket: polyamide.
• Wheel: polyamide, hardness 75° Shore D.
• Hub: smooth (plain) hub.

Version

• Fixing method: threaded stem.
• Type: swivel furniture caster.
• Available versions: without brake, with brake.

Dimensional range / capacity
Wheel diameter (d1): 75 mm. Tread width (l2): 8 mm. Load capacity: 50 kg. Operating temperature: -10 °C to +40 °C.

Order references / variants

• 38-2061-75 — Without brake.
• 38-2062-75 — With brake.

Available documents (list)

• Wheels and casters - Data sheet (PDF)
• Series 38: Wheels and casters (PDF)
• Series 38: Technical specifications (PDF)

Application
- Use: furniture castors (mobility for furniture and small equipment).

Technical specifications

• Model / series: 38-206
• Wheel diameter (d1): 75 mm
• Inner diameter / bore (d2): 10 mm
• Total height (h1): 88 mm
• Stem length / l1: 62 mm
• Tread width (l2): 8 mm
• Total wheel width (l3): 54 mm
• Usable length (l4): 15 mm
• Optional length (l5): - or 25 mm depending on version
• Load capacity: 50 kg
• Materials: polyamide bracket and wheel, smooth hub
• Fixing: threaded stem
• Available versions: Without brake, With brake
• Operating temperature range: -10 °C to +40 °C
