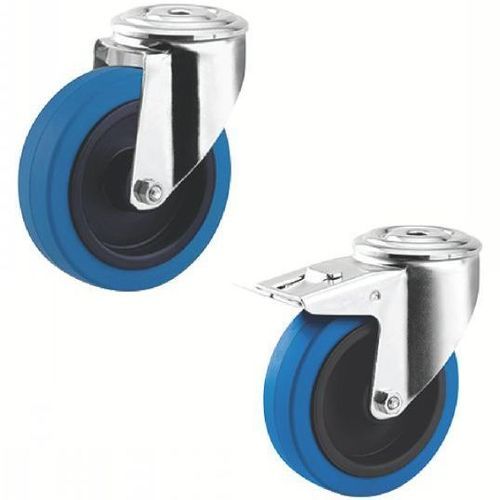

Swivel caster 38-506 series

rodfor trolleyselastic

Definition
A caster is a mechanical component consisting of a wheel mounted in a yoke (bracket) combined with a mounting system (plate, central-hole, stem or bushing) to attach it under a support. It provides mobility for equipment or loads by converting translational movement into wheel rotation, reducing the effort required to move items.

Material

• Bracket in stainless steel, swivel on double ball race, bolted axle.
• Wheel core in polyamide.
• Grey non-marking elastic rubber tread, 64° Shore A hardness.
• Stainless steel roller bearings.

Version

• Mounting: central-hole fix.
• Available as swivel with or without brake (versions "Without brake" and "With rear brake").

Dimensional range

• Wheel diameter (d1): 100 or 125 mm.
• Tread width (l2): 34 or 40 mm.
• Offset (l1): 40 or 41 mm.
• Rated load: 150 kg.

Use

• Operating temperature: -20 °C to +80 °C.
• Resistant to washing and detergents.
• Compliant with the NF Hygiène standard.
• Suitable for meal-distribution trolleys and similar applications.

Variants / Order examples (excerpts)
Ref | Version | d1 (mm) | d2 (mm) | h1 (mm) | l1 (mm) | l2 (mm) | Load (kg)
38-5061-100 | Without brake | 100 | 13 | 128 | 41 | 34 | 150
38-5061-125 | Without brake | 125 | 13 | 155 | 40 | 40 | 150
38-5062-100 | With rear brake | 100 | 13 | 128 | 41 | 34 | 150
38-5062-125 | With rear brake | 125 | 13 | 155 | 40 | 40 | 150

Documents
- Wheels and casters - Technical data sheet

Characteristics / technical specifications

• Series / model: 38-506.
• Type: Medium-duty swivel caster, central-hole mount, stainless steel.
• Bracket: stainless steel, swivel on double ball race, bolted axle.
• Wheel: polyamide core.
• Tread: grey elastic rubber, 64° Shore A, non-marking.
• Bearings: stainless steel rollers.
• Available modes: without brake / with rear brake.
• Available diameters: 100 mm or 125 mm.
• Available tread widths: 34 mm or 40 mm.
• Offsets: 40 mm or 41 mm depending on reference.
• Indicative heights (h1): 128 mm (for d1 = 100) or 155 mm (for d1 = 125).
• Rated load: 150 kg.
• Operating temperature range: -20 °C to +80 °C.
• Resistance: washing and detergents; compliant with NF Hygiène.
