Rotary blade cutting machine VEGAPACK
for aluminumprofilefor aluminum profiles

rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Material
for aluminum
Product handled
profile, for aluminum profiles
Control type
CNC
Associated function
trimming
Applications
for industrial applications
Other characteristics
with conveyor, roller, 90°
X travel

3,450 mm
(136 in)

Description

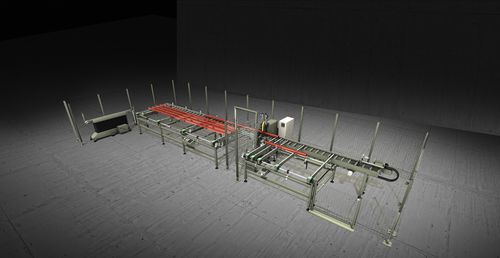

A 90° cutting centre built exclusively to cut aluminium profile bundles. The centre is composed of several interconnected units which allow a single operator to manage the entire work cycle, from the loading to the unloading phase of the custom-cut bundles. Aided by an optional copy router lift, the operator places the bundles on the step-by-step accumulation-operated loader bench (max. 4-5 bundles). A motor-driven roller then brings the bundle onto the cutting unit, which carries out an initial trimming of the bundle and then the subsequent customised cutting (work cycle set by software). Cutting swarf is discharged automatically by displacement of the central roller conveyor applied to the cutting unit. The pieces cut off from the bundle are evacuated from the cutting zone by the unloading table roller and picked up by belts to be unloaded manually by the operator. The workpiece loading and unloading magazine is equipped with an automatic belt-driven translation system with sensor-regulated step-by-step accumulation operation. This enables continuous machining, reducing cycle time. The unloading magazine, available in two sizes, allows the accumulation of finished workpieces up to a maximum of 5 bundles, and a special sensor signals its saturation to the operator to allow manual unloading. The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.
