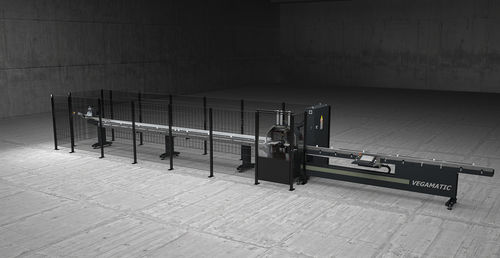

Rotary blade cutting machine VEGAMATIC series
for aluminumfor PVCprofile

rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Material
for aluminum, for PVC
Product handled
profile, for aluminum profiles, for PVC profiles
Control type
CNC
Applications
for industrial applications
Workpiece loading
manual loading
Phase
three-phase
Configuration
single-head, 3-axis, 2-axis
Other characteristics
semi-automatic, linear, with conveyor, 45°
X travel

1,000 mm
(39 in)

Description

A semiautomatic version cutting centre with 2 controlled axes, manual loading/unloading on opposite sides of the machine, with front CNC blade, dedicated to cutting Aluminium and PVC profiles and light alloys in general. It performs predefined and optimised cutting lists in automatic. Designed to execute cutting at angles ranging from 45° to 135° or from 22°30' to 157°30' The extremely fast and precise CNC numerical control system for bar positioning includes a gripper for clamping the profile and the possibility to manually adjust the position. The movement is transmitted on a rack through a low backlash gearbox to maintain the high standards of precision guaranteed by the CNC. The feeder slides on case-hardened and tempered bars through linear bushings. The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines. The cutting module consists of a single-head cutting off machine with hydro-pneumatic blade feed. It is provided with a 550 mm blade featuring wide cutting range: from 45° to 135° (from 22°30’ to 157°30’ optional). Setting of the cutting angles is fully automatic and is handled by the CNC.
