Solid carbide milling cutter GSF-2xD-R30-IKZ-HB-TiCN
threadcoatedfor steel

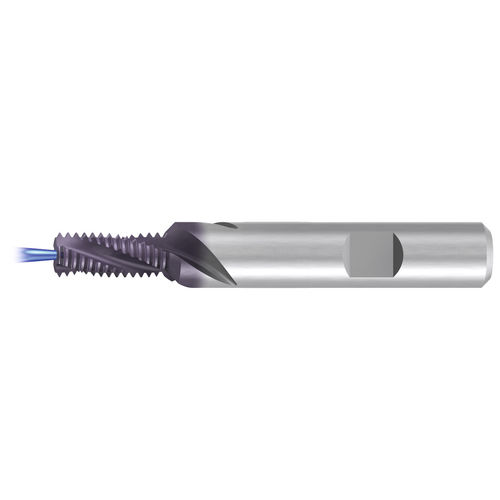

Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel
Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel
Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel - image - 2
Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel - image - 3
Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel - image - 4
Solid carbide milling cutter - GSF-2xD-R30-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel - image - 5
Add to favorites
Compare this product
Go to the EMUGE-FRANKEN website for more information

Characteristics

Construction
solid carbide
Type
thread
Material
coated
Treated material
for steel, for cast iron, for aluminum, for non-ferrous materials, for hardened materials
Other characteristics
cutting
Diameter

Min.: 5 mm
(0.2 in)

Max.: 16 mm
(0.63 in)

Length

Min.: 55 mm
(2.17 in)

Max.: 102 mm
(4.02 in)

Description

Machining of countersinking bevel and internal thread. Product features and benefits: Smooth milling operation thanks to flutes with 30° helix angle. Predrilled tap hole necessary. Size-dependent tool with corrected thread profile. Technical details thread orientation: internal basic version: GSF - thread milling cutter with countersinking step type: GSF-R30 coolant supply: IKZ - Axial hole helix direction: R30 clamping flat: HB / Weldon shank standard: DIN 6535 Coating: TICN cutting material: carbide
