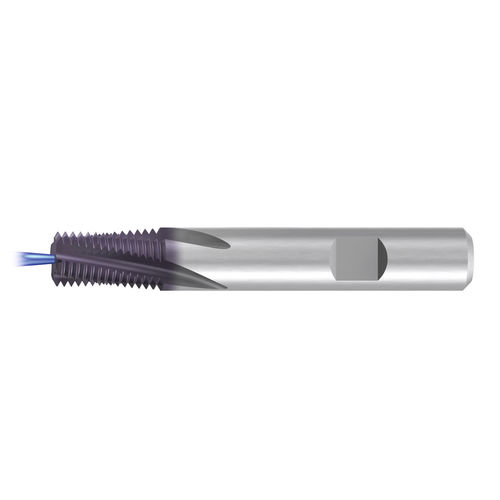

Solid carbide milling cutter GF-keg-R15-lg-IKZ-SD12-Z4-HB-TiCN
threadfor steelfor hardened materials

Solid carbide milling cutter - GF-keg-R15-lg-IKZ-SD12-Z4-HB-TiCN - EMUGE-FRANKEN - thread / for steel / for hardened materials
Solid carbide milling cutter - GF-keg-R15-lg-IKZ-SD12-Z4-HB-TiCN - EMUGE-FRANKEN - thread / for steel / for hardened materials
Solid carbide milling cutter - GF-keg-R15-lg-IKZ-SD12-Z4-HB-TiCN - EMUGE-FRANKEN - thread / for steel / for hardened materials - image - 2
Add to favorites
Compare this product
Go to the EMUGE-FRANKEN website for more information

Characteristics

Construction
solid carbide
Type
thread
Treated material
for steel, for cast iron, for aluminum, for non-ferrous materials, for hardened materials
Other characteristics
cutting
Diameter

10.15 mm, 11.15 mm
(0.4 in, 0.44 in)

Length

80 mm
(3.15 in)

Description

Machining of tapered internal threads. Product features and benefits: Smooth milling operation thanks to flutes with 15° helix angle. Deep thread possible thanks to long thread part. Partly across all dimensions. Cylindrical or preferably tapered pre-drilled tap hole necessary. Pitch-dependent tool with corrected thread profile. Technical details thread orientation: internal basic version: GF - thread milling cutter type: GF-KEG-R15-long coolant supply: IKZ - Axial hole helix direction: R15 clamping flat: HB / Weldon shank standard: DIN 6535 Coating: TICN
