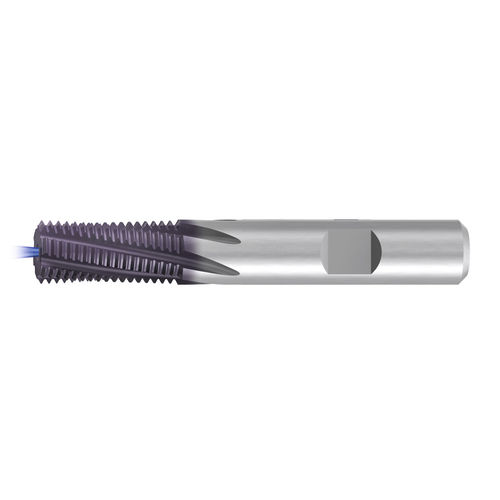

Solid carbide milling cutter GF-H-R10-IKZ-HB-TiCNthreadcoatedfor steel
Add to favorites
Compare this product
Characteristics
- Construction
- solid carbide
- Type
- thread
- Material
- coated
- Treated material
- for steel, for non-ferrous materials, for hardened materials
- Other characteristics
- with internal coolant, helix angle, clamping, cutting
- Diameter
Min.: 6 mm
(0.24 in)Max.: 20 mm
(0.79 in)- Length
Min.: 55 mm
(2.17 in)Max.: 100 mm
(3.94 in)
Description
Machining of internal threads.
Product features and benefits:
For hard machining from 55 HRC.
Smooth milling operation thanks to flutes with 10° helix angle.
Predrilled tap hole necessary.
Size-dependent tool with corrected thread profile.
Technical details
thread orientation:
internal
basic version:
GF - thread milling cutter
type:
GF-H-R10
coolant supply:
IKZ - Axial hole
helix direction:
R10
clamping flat:
HB / Weldon
shank standard:
DIN 6535
Coating:
TICN
cutting material:
carbide
