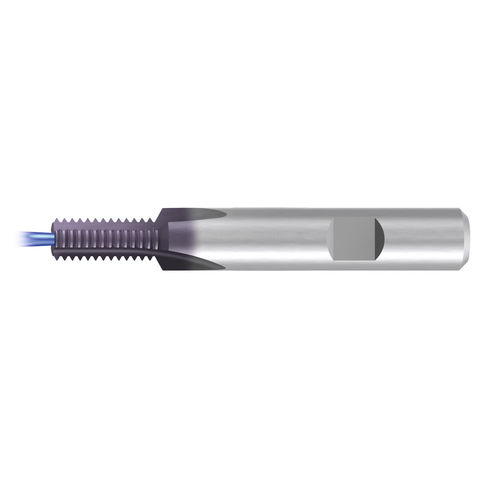

Solid carbide milling cutter GSF-1,5xD-IKZ-HB-TiCN
threadcoatedfor steel

Solid carbide milling cutter - GSF-1,5xD-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel
Solid carbide milling cutter - GSF-1,5xD-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel
Solid carbide milling cutter - GSF-1,5xD-IKZ-HB-TiCN - EMUGE-FRANKEN - thread / coated / for steel - image - 2
Add to favorites
Compare this product
Go to the EMUGE-FRANKEN website for more information

Characteristics

Construction
solid carbide
Type
thread
Material
coated
Treated material
for steel, for cast iron, for aluminum
Other characteristics
with internal coolant, cutting, straight flute
Diameter

Min.: 4 mm
(0.16 in)

Max.: 16 mm
(0.63 in)

Length

Min.: 55 mm
(2.17 in)

Max.: 102 mm
(4.02 in)

Description

Machining of countersinking bevel and internal thread. Product features and benefits: Tool with straight flutes. Predrilled tap hole necessary. Size-dependent tool with corrected thread profile. Technical details thread orientation internal basic version GSF - thread milling cutter with countersinking step type GSF coolant supply IKZ - Axial hole helix direction straight clamping flat HB / Weldon shank standard DIN 6535 Coating TICN

Catalogs

Go to the EMUGE-FRANKEN website for more information

Other EMUGE-FRANKEN products

thread milling cutter
