Circular milling cutter ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46
solid carbidethreadwith TiAlN coating

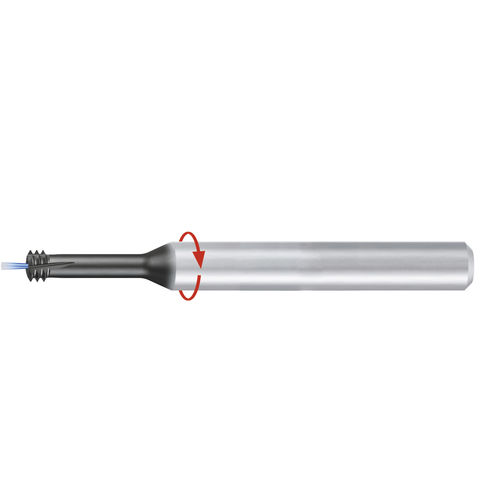

Circular milling cutter - ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 - EMUGE-FRANKEN - solid carbide / thread / with TiAlN coating
Circular milling cutter - ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 - EMUGE-FRANKEN - solid carbide / thread / with TiAlN coating
Circular milling cutter - ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 - EMUGE-FRANKEN - solid carbide / thread / with TiAlN coating - image - 2
Circular milling cutter - ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 - EMUGE-FRANKEN - solid carbide / thread / with TiAlN coating - image - 3
Circular milling cutter - ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 - EMUGE-FRANKEN - solid carbide / thread / with TiAlN coating - image - 4
Add to favorites
Compare this product
Go to the EMUGE-FRANKEN website for more information

Characteristics

Geometry
circular
Construction
solid carbide
Type
thread
Material
with TiAlN coating
Treated material
for steel, for cast iron, for aluminum, for non-ferrous materials, for hardened materials
Other characteristics
with internal coolant, clamping, left-hand, cutting, profile
Diameter

Min.: 5 mm
(0.2 in)

Max.: 24 mm
(0.94 in)

Length

Min.: 55 mm
(2.17 in)

Max.: 110 mm
(4.33 in)

Description

Machining of internal threads. Product features and benefits: For demanding materials such as Inconel and titanium. From thread size M3. Predrilled tap hole necessary. Left-hand rotating tool. Pitch-dependent tool with corrected thread profile. Technical details thread orientation: internal basic version: ZGF - circular thread milling cutter type: ZGF-S-CUT coolant supply: IKZ helix direction: L10 clamping flat: HA shank standard: DIN 6535 Coating: TIALN-T46 cutting material: carbide
