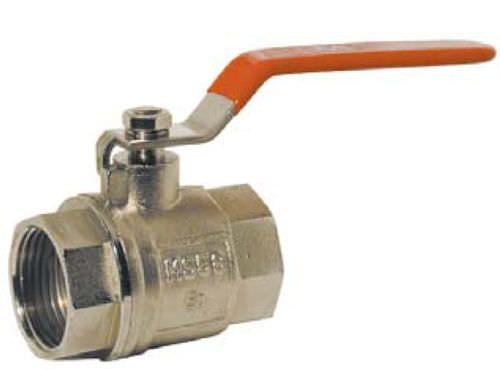

Ball valve CB Series
manualcontrolfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
control
Media
for water
Body
brass
Number of channels
2-way
Pressure

16 bar (232.1 psi)

Description

DESIGN Body consists of two screwed parts, full cylindric bore. OPERATION Rotation of the handle through 90°. CONNECTION Female B.S.P thread: Yén.2W, ISO 228 Female-/ Male B.S.P thread: Vi"...2", ISO 228 PRESSURE RANGE V*"...T : PN 30 (up to 80°C) 21/2" :PN 16(upto80°C) For higher temperatures please refer to the Pressure-Temperature-Diagram. TEMPERATURE RANGE -20°C ... +100°C
