Rugged waste crusher-shredder V

compactfor industrial applicationsfor metals

Product description

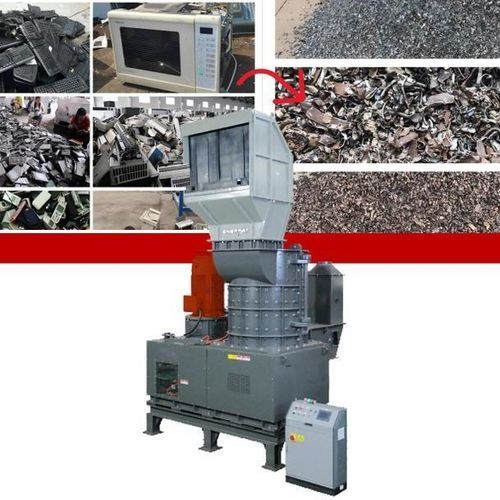

The ENERPAT V series vertical hammer mill V1500 is designed for efficient processing of e‑waste and electronic scrap. The machine delivers high‑performance comminution of a wide range of end‑of‑life electronics — including printed circuit boards, computers, small appliances and TVs — producing a homogeneous fraction that facilitates downstream separation and metal recovery. The robust vertical design and powerful impact rotor ensure continuous operation and high throughput, optimising preparation for subsequent sorting and extraction processes.

Advantages of ENERPAT hammer mill

• High crushing efficiency — high‑manganese cast hammers resist wear and maintain throughput across mixed materials.
• Clean comminution — advanced cutting system provides uniform fragment size and cleaner metal surfaces for easier separation.
• Easy maintenance — split housing and compact layout give rapid access to service points, reducing downtime and service costs.
• Integrated safety — protective guards, sensors and lock‑out features to meet industry safety standards.

Applications

• Processing of e‑waste / WEEE streams.
• Shredding of printed circuit boards (PCB).
• Processing computers and components.
• Small household appliances.
• Televisions and other electronic devices.
• Electronic casings (plastic and metal), aluminium heatsinks and metal parts.
• Mixed electronic scrap for subsequent separation and recovery of copper, aluminium and other metals.

Working principle
Material is fed into the crushing chamber through the inlet. A high‑speed rotor fitted with hammers applies impact forces to break the material into smaller pieces. The material is subjected to repeated impact, shear and abrasion until it reaches the target size, then passes through a screen and exits the mill for further separation and sorting.

Construction and structure

• Wear‑resistant heavy‑duty housing — welded construction designed to withstand impact and abrasion.
• Split housing design — simplifies maintenance and repair.
• Reinforced frame — built for high loads and continuous operation in demanding conditions.
• Hammer assembly — wear‑resistant cast steel hammers, heat treated for extended service life.
• Drive system — reliable electric motor (e.g. Siemens), large‑diameter pulleys and hydraulic coupling for optimized start‑up and reduced inrush current.
• Bearing units — FAG / SKF self‑aligning bearings to reduce wear and extend life.
• Intelligent control — one‑button start, PLC control (Siemens or Schneider) with touchscreen and automatic material feed regulation.

Key technical parameters
Model | Main motor power (kW) | Speed (rpm) | Number of hammers (pcs) | Machine dimensions (mm) | Weight (T)
V1500 | 132 | 670 | 36 | 3294 × 780 × 5014 | 14

Specifications

• Series: V (V series)
• Type: vertical hammer mill for e‑waste
• Materials processed: PCBs, computers, small appliances, TVs, electronic housings, aluminium heatsinks, mixed WEEE
• Hammers: wear‑resistant cast steel, heat treated
• Rotor: high‑speed rotor with mounted hammers
• Drive: powerful electric motor (e.g. Siemens), large pulleys, hydraulic coupling
• Bearing system: FAG / SKF self‑aligning
• Control: PLC (Siemens/Schneider), touchscreen, automatic feed control
• Safety: protective guards, sensors and lock‑out devices
• Purpose: material preparation for downstream separation and metal recovery
