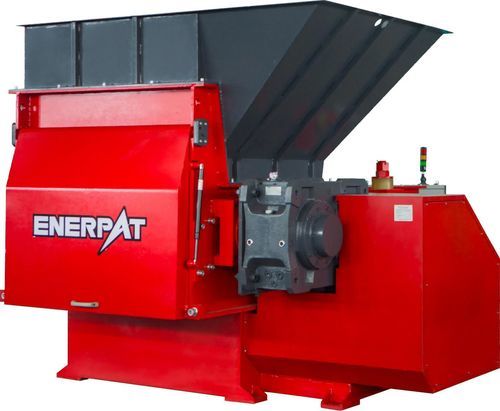

Single shaft shredder MSA-F series

metalfor cablesfor drums

Overview
Single-shaft shredder Enerpat series MSA-F equipped with PLC automatic control and large-capacity hopper. Designed to process medium and complex materials with throughput approximately 1–20 tonnes per hour depending on model and material. CE certified; key components from Siemens and other leading manufacturers. Standard warranty: 1 year on the installation, 5 years on the motor. Global service network with sample testing, engineering support and after-sales assistance.

Operating principle

• Material feed: hydraulic cylinder-driven feeding box pushes material toward the cutting shaft; large hopper ensures continuous feed.
• Size reduction: material is cut by the relative movement between rotating knives and fixed knives on the shaft.
• Particle sizing: shredded material exits through a screen; output size determined by screen aperture.

Material testing
We perform tests on various materials such as drums, cables, gas cylinders and metal swarf; test photos and sample output images are available to demonstrate results.

Main advantages

• Rigid welded frame with modular design for ease of assembly and maintenance.
• Feeding system: slow hydraulic feeding mechanism for steady material delivery; dual feeding modes for different volumes.
• Cutting shaft: 42CRMO steel (Baosteel) shaft designed to resist entanglement and blockage, optimized for high throughput.
• Interchangeable screens: round, hexagonal or fish-mouth openings; output size strictly controlled; pneumatic springs ease screen opening.
• Drive and powertrain: equipped with Siemens motor and Bonfiglioli reducer; standard European pulleys for easy belt tension adjustment.
• Intelligent control: Siemens/Schneider PLC with visualization; automatic reverse on overload and automatic stop on low material feed.

Technical specifications

• Series/model: MSA-F (MSA-F600, MSA-F800, MSA-F1000, MSA-F1200, MSA-F1500).
• Throughput: approx. 1–20 t/h depending on model and material.
• Motor power (kW): MSA-F600: 18.5; MSA-F800: 37; MSA-F1000: 45; MSA-F1200: 55; MSA-F1500: 75.
• Cutting chamber width (mm): MSA-F600: 600; MSA-F800: 800; MSA-F1000: 1000; MSA-F1200: 1200; MSA-F1500: 1500.
• Overall dimensions (mm): MSA-F600: 1290 × 1820 × 1730; MSA-F800: 2800 × 1765 × 2080; MSA-F1000: 2800 × 1980 × 2090; MSA-F1200: 2800 × 2490 × 2135; MSA-F1500: 2850 × 2720 × 2150.
