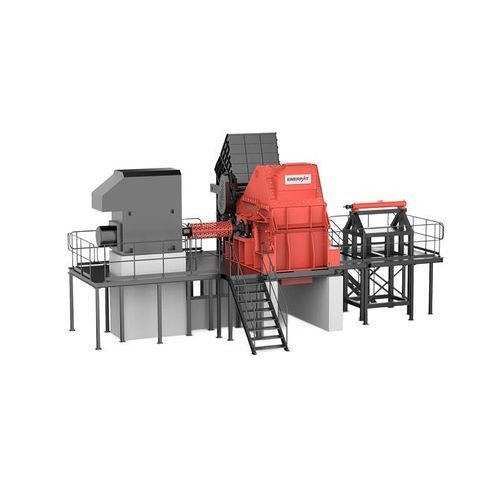

Metal mill MSA-H

for aluminumfor oil filterhammer

Overview
Enerpat MSA-H series scrap crusher is designed for efficient metal processing using high-speed hammer technology. The machines are fitted with Siemens and Schneider electrical components. Capacity varies by model — from about 1 to over 100 t/h depending on material type. The unit reduces metal size, separates contaminants and conditions material for downstream recycling.

Applications

• Processing of EV and automotive body parts
• Shredding small household appliances and electrical assemblies
• Aluminium scrap, light steel and other metal wastes
• Example tested materials: oil drums/barrels, metal scrap, oil filters (demonstration tests)

Certifications and services
The series is CE and ISO certified. Warranty: 1 year on the complete machine and 5 years on the motor. Free material testing, assistance in project design, technical support and installation training are available.

Operating principle

• Material is fed into the crushing chamber.
• Hammer heads mounted on a high-speed rotor strike the material repeatedly, breaking it and creating kinetic fragmentation.
• Crushed material passes through an interchangeable screen; particles of target size are discharged while contaminants are separated.

Key features and construction

• Cabinet structure built from thick steel plates with wear-resistant design; upper and lower access for simplified maintenance.
• Special spindle design: hammer shaft with pull-out pin system allows rapid 360° hammer replacement and rotation; spindle made from high-strength alloy steel.
• Removable screen module for easy replacement; strict control of output particle size ensures homogeneous fraction.
• Feed and drive system using Siemens motor and high-standard pulleys for reliable operation.
• Intelligent control system: Siemens/Schneider PLC with visual interface, overload protection (automatic rotor reversal on overload) and stop-on-low-feed functions.

Specifications (summary technical data)
Model | MSE-H800 | MSE-H1000 | MSE-H1300 | MSE-H1800 | MSE-H2000 | MSE-H2600
Main power (kW) | 110/132 kW | 220 kW | 355 kW | 560 kW | 750-1120 kW | 1500-4410 kW
Rotor speed | 480 rpm | 480 rpm | 594 rpm | 594 rpm | 594 rpm | 594 rpm
Shaft length | 762 mm | 1016 mm | 1270 mm | 1778 mm | 2032 mm | 2641 mm
Feed width | 760 mm | 1000 mm | 1200 mm | 1700 mm | 2000 mm | 2600 mm
Motor coupling type | V-belt | V-belt | Cardan coupling | Cardan coupling | Cardan coupling | Cardan coupling
Number of hammers | 10 pcs | 10 pcs | 10 pcs | 10 pcs | 10 pcs | 10 pcs
Output (steel) | 2-3 t/h | 8-10 t/h | 8-12 t/h | 10-15 t/h | 15-30 t/h | 30-160 t/h

Technical characteristics / specifications

• Series: MSA-H (Enerpat hammer series)
• Example models: MSE-H800, MSE-H1000, MSE-H1300, MSE-H1800, MSE-H2000, MSE-H2600
• Power range: from ~110 kW to several thousand kW (model dependent)
• Rotor speed: 480–594 rpm (depending on model)
• Shaft length / working width: 762 mm to 2641 mm; feed width 760–2600 mm
• Drive: V-belt or cardan coupling (model dependent)
• Number of hammers: typically 10 per specified models
• Throughput (steel): from 2–3 t/h up to 30–160 t/h depending on model
• Electronics and control: Siemens / Schneider PLC, visual interface, overload protection
• Construction materials: thick steel plate housing; spindle made of high-strength alloy steel
