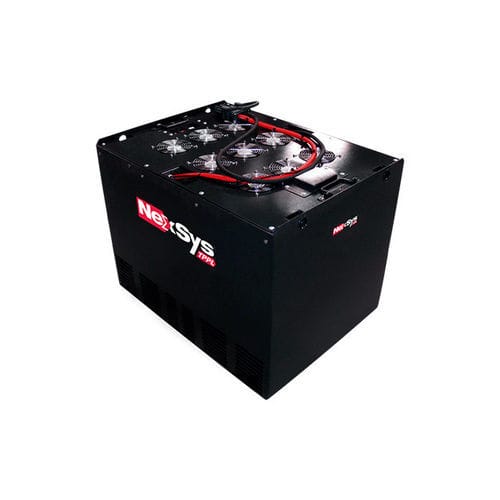

Lead-acid battery NexSys® TPPL ATP

12 Vfor forklift trucksmaintenance-free

Overview
Upgrade equipment power with the optional Accelerated Throughput Package (ATP) for NexSys® TPPL batteries. Designed for high-volume material-handling applications, these maintenance-free batteries increase daily energy throughput by up to 50% versus standard TPPL and up to 200% versus traditional lead‑acid batteries.

Performance and design highlights
NexSys® TPPL ATP batteries integrate intelligent controls and advanced thermal management. Specially designed cooling enables improved charge performance of up to 25%. Available in multiple capacities and configurations, the batteries support a broad range of industrial equipment and include provisions for intelligent battery monitoring to enhance reliability and service life.

Key features

• Up to 98% recharge efficiency
• High daily energy throughput for intensive use
• Maintenance-free operation
• Optimized for high-volume applications
• Available for various equipment types and capacities
• Intelligent battery monitoring and controls
• Advanced thermal management and dedicated cooling (improved charge performance up to 25%)
• Up to +50% daily energy throughput vs. standard TPPL; up to +200% vs. lead‑acid

Product specification
Application: Forklifts & pallet trucks
Technology / Chemistry: Thin plate pure lead (TPPL)
Capacity (Min) - Europe standard: 130 Ah
Capacity (Max) - Europe standard: 1400 Ah
Capacity Europe standard: Ah / C5 / 1.70Vpc / 30°C
Capacity (Min) - US standard: 560 Ah
Capacity (Max) - US standard: 840 Ah
Capacity US standard: Ah / C6 / 1.75Vpc / 77°F
Voltage (Min): 12 V
Voltage (Max): 120 V

Technical specifications

• Application: Forklifts, pallet trucks and similar industrial vehicles
• Technology: Thin plate pure lead (TPPL)
• Europe capacity range: 130–1400 Ah (Ah / C5 / 1.70Vpc / 30°C)
• US capacity range: 560–840 Ah (Ah / C6 / 1.75Vpc / 77°F)
• Voltage range: 12–120 V
• Recharging efficiency: up to 98%; ATP option provides improved charge performance up to +25%
• Maintenance: maintenance-free
• Includes provisions for intelligent monitoring and advanced thermal management
• Configurations: multiple capacities and formats to fit varied equipment types
