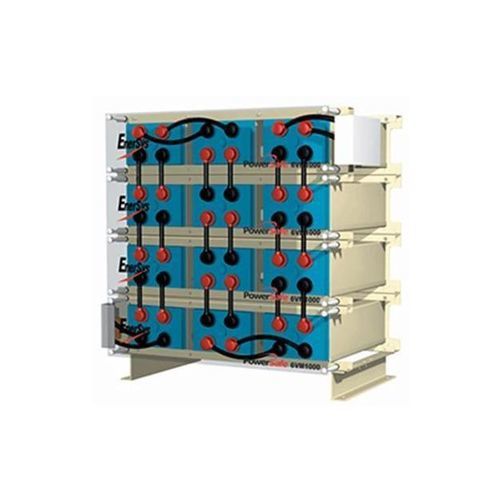

Lead-acid battery PowerSafe® VM

12 V6 V2 V

Overview
PowerSafe® VM valve-regulated lead-acid (VRLA) batteries are designed for large-capacity stationary applications. Their modular design with an integral racking system enables a compact, quick and simple installation for telecommunications, utilities, high- and low-voltage UPS systems and emergency lighting applications.

Cell design and racking
Cells feature thicker positive plates for extended life and are housed in dedicated modules that maintain constant, uniform compression throughout the cell life. Each cell includes an individual safety valve to allow controlled gas release if internal pressure rises.

Key features

• Capacity range: 200 to 5000 Ah (application range)
• No watering required (maintenance-free)
• Side or top terminations depending on configuration
• UL94 V-0 rated flame retardant container and lid
• PowerSafe® products are marketed as SuperSafe® in India, Indonesia, Malaysia, Singapore and Thailand

Product specifications
Application: Macro cells; Central offices/switching centers; Switchgear and substations; Medical standby power; Microgrids
Technology/Chemistry: AGM (VRLA)
Capacity (Min) - Europe standard: 200
Capacity (Max) - Europe standard: 4920
Capacity Europe standard: Ah / C10 / 1.8Vpc / 20°C
Capacity (Min) - US standard: 0
Capacity (Max) - US standard: 0
Capacity US standard: Ah / 8hr / 1.75Vpc / 77°F
Voltage (Min): 2
Voltage (Max): 12
Design: Others

Technical specifications

• Product family: PowerSafe® VM
• Technology: AGM (Valve Regulated Lead Acid - VRLA)
• Capacity range (Europe): 200 Ah (min) to 4920 Ah (max), Ah / C10 / 1.8Vpc / 20°C
• Voltage range: 2 V to 12 V
• Modular design with integral racking system for compact, quick installation
• Enhanced cell design with thicker positive plates and modules maintaining uniform compression
• Individual cell safety valves for controlled gas release
• No watering requirements (maintenance-free)
• Termination options: side or top depending on configuration
• Container and lid: UL94 V-0 flame retardant
