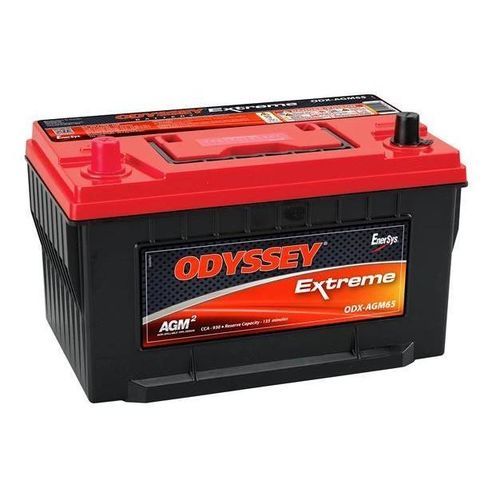

Lead-acid battery ODYSSEY® EXTREME

12 Vfor electric vehiclesfor marine applications

Overview
ODYSSEY® Extreme Series™ batteries combine high cranking power and deep-cycle reserve in a sealed TPPL AGM design. Using 99% pure thin‑plate pure lead (TPPL) construction, they produce engine‑cranking pulses up to 2700 A for 5 seconds and can withstand up to 400 charge‑discharge cycles at 80% depth of discharge. The sealed Absorbed Glass Mat (AGM) dry‑cell construction permits flexible installation orientations, including side mounting.

Highlights

• Massive starting power: engine cranking pulses up to 2700 amps for five seconds
• Extreme temperature tolerance: -40°F (-40°C) to 140°F (60°C) for non‑metal jacket models; -40°F (-40°C) to 176°F (80°C) for metal jacket models
• Longer design life: 8–12 years design life; typical service life 3–10 years
• Vibration resistant: protection against high‑impact shock and vibration
• Cycle capability: up to 400 charge‑discharge cycles to 80% depth of discharge

Product specification
Application: Vehicles and engine start; Rail; Marine
Technology / Chemistry: Thin plate pure lead (TPPL)
Capacity (Min) - Europe standard: 8 Ah
Capacity (Max) - Europe standard: 214 Ah
Capacity Europe standard: Ah / C20 / 1.67Vpc / 25°C
Capacity (Min) - US standard: 13 Ah
Capacity (Max) - US standard: 214 Ah
Capacity US standard: Ah / C20 / 1.67Vpc / 77°F
Voltage (Min): 12 V
Voltage (Max): 12 V
Design: Front terminal; Top terminal; Other configurations available

Technical characteristics

• Series name: ODYSSEY Extreme Series™
• Technology: Thin Plate Pure Lead (TPPL), Absorbed Glass Mat (AGM), sealed dry cell
• Engine cranking capability: up to 2700 A for 5 seconds
• Cycle life: up to 400 charge‑discharge cycles to 80% depth of discharge
• Capacity range (Europe): 8 Ah to 214 Ah (Ah / C20 / 1.67Vpc / 25°C)
• Capacity range (US): 13 Ah to 214 Ah (Ah / C20 / 1.67Vpc / 77°F)
• Nominal voltage: 12 V
• Temperature tolerance: -40°F (-40°C) to 140°F (60°C) non‑metal jacket; -40°F (-40°C) to 176°F (80°C) metal jacket
• Design life: 8–12 years (design life); service life typically 3–10 years depending on application
• Vibration/shock resistance: protection against high‑impact shock and vibration
• Install orientation: can be installed on its side (sealed AGM design)
• Typical terminal designs: front terminal, top terminal and other configurations
