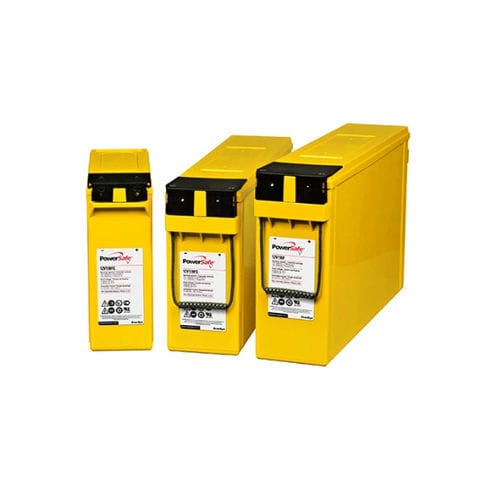

Lead-acid battery PowerSafe® V-FT
12 Vfor emergency lightingfor UPS

Lead-acid battery - PowerSafe® V-FT - ENERSYS - 12 V / for emergency lighting / for UPS
Lead-acid battery - PowerSafe® V-FT - ENERSYS - 12 V / for emergency lighting / for UPS
Add to favorites
Compare this product

Characteristics

Type
lead-acid
Voltage
12 V
Applications
for medical applications, for UPS, Alarms, for emergency lighting, for security systems
Other characteristics
high density energy, long life
Load capacity

Max.: 190 Ah

Min.: 100 Ah

Length / diameter

280 mm, 395 mm, 510 mm, 561 mm
(11 in, 15.6 in, 20.1 in, 22.1 in)

Width

97 mm, 105 mm, 108 mm, 110 mm, 125 mm
(3.82 in, 4.13 in, 4.25 in, 4.33 in, 4.92 in)

Height

Max.: 316 mm
(12.4 in)

Min.: 159 mm
(6.3 in)

Weight

Max.: 57.3 kg
(126.32 lb)

Min.: 10.8 kg
(23.81 lb)

Description

Overview
Featuring Thin Plate Pure Lead (TPPL) TPPL technology, the PowerSafe® V-FT range of Valve Regulated Lead Acid (VRLA) batteries provides compact, high-energy standby power for telecommunications and critical infrastructure.

More power in less space
PowerSafe® V-FT batteries deliver high energy density in compact formats suitable for 19" and 23" racking. Proprietary TPPL construction reduces footprint compared with conventional standby batteries while maintaining stable performance under telecom duty cycles.

Key features
  • Capacity range (US): 100–190 Ah
  • Capacity range (EU): 31–190 Ah
  • Thin Plate Pure Lead (TPPL) VRLA technology
  • Front terminal connections for simplified installation and maintenance
  • 24 months shelf life
  • Marketed as SuperSafe® in India, Indonesia, Malaysia, Singapore and Thailand


Applications
  • Macro cells
  • Network access equipment
  • In‑building wireless
  • Passive Optical LANs
  • Central offices / switching centers
  • Industrial UPS
  • Medical standby power
  • Emergency lighting
  • Alarm & security systems
  • Public safety networks
  • Security & surveillance
  • Traffic & Intelligent Transportation Systems (ITS)
  • Data centers


Technical specification (table)
Application: Macro Cells; Network Access; In‑building Wireless; Passive Optical LANs; Central Offices / Switching Centers; Industrial UPS; Medical Standby Power; Emergency Lighting; Alarm & Security Systems; Public Safety Networks; Security & Surveillance; Traffic & ITS; Data Centers
Technology / Chemistry: Thin Plate Pure Lead (TPPL)
Capacity (Min) - Europe standard: 31 Ah
Capacity (Max) - Europe standard: 190 Ah
Capacity Europe standard: Ah / C10 / 1.8Vpc / 20°C
Capacity (Min) - US standard: 100 Ah
Capacity (Max) - US standard: 190 Ah
Capacity US standard: Ah / 8hr / 1.75Vpc / 77°F
Voltage (Min): 12 V
Voltage (Max): 12 V
Design: Front terminal

Technical characteristics
  • Model / Range: PowerSafe® V-FT
  • Chemistry: TPPL VRLA
  • Nominal voltage: 12 V
  • Capacity (EU standard, C10 / 1.8Vpc / 20°C): 31–190 Ah
  • Capacity (US standard, 8 hr / 1.75Vpc / 77°F): 100–190 Ah
  • Design: Front terminal for fast installation and maintenance
  • Shelf life: 24 months
  • Available in compact, energy-dense designs for 19" and 23" racking
