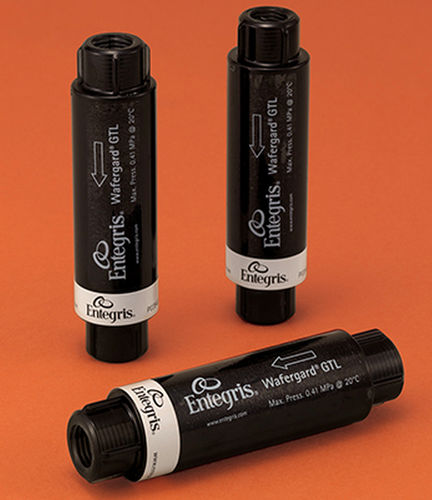

Gas filter Wafergard® GTL

membranePTFEhydrophobic

Wafergard® GTL In-line Gas Filters Remove particles from inert gases for flow rates up to 80 SLPM Efficient, low-cost point-of-use filtration of inert gases For flow rates up to 80 SLPM Materials: Membrane: Hydrophobic Teflon® fluoropolymer PTFE Supports/housings: Polysulfone Connections: Rc1⁄4 (PT1⁄4 female), 1⁄4” NPT female Membrane area: 25 cm2 (3.9 in2) Particle retention: >99.9999999% removal of all particles greater than 0.003 μm diameter (verified at the most penetrating particle size) Operating conditions: Maximum operating pressure: 0.41 MPa (4.1 bar, 56.6 PSID) at 20°C Maximum forward differential pressure: 0.41 MPa (4.1 bar, 56.6 PSID) at 20°C Maximum reverse differential pressure: 0.03 MPa (0.3 bar, 4.35 PSID) at 20°C Maximum operating temperature: 50°C (122°F) Dimensions: Diameter: 25 mm (0.98”) Length: 101 mm (4.0”)
