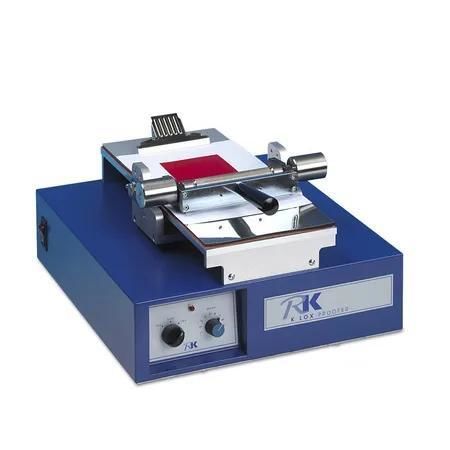

Paper coater AUTOMATIK‑K‑LOX‑ROLLER 622

filmrollerwire bar

Short description
Roller press‑on instrument with chrome anilox rollers; multiple engraved anilox options available.

Description
An instrument for applying defined layers of liquid media (e.g. flexographic inks) onto absorbent or non‑absorbent substrates to produce repeatable sample coatings close to conventional flexographic printing. Application parameters are determined using engraved anilox rollers or wire‑wound rollers.

Design and Function
The AUTOMATIK‑K‑LOX‑ROLLER 622 consists of a base unit (K 101) and the K‑Lox attachment. It provides a constant pull‑off speed (up to 15 m/min), uniform contact pressure and high repeatability.

Scope of delivery

• AUTOMATIK‑K‑LOX‑ROLLER 622 – K101 base unit
• Holding frame incl. 2 weights
• 2 rubber impression rollers (65 Shore)
• 3 QCH‑engraved anilox rollers (ref. 10, 12, 14)
• 500 test paper sheets matt/glossy
• 250 sheets of spoiling paper
• Coating bed consisting of Soft/Rubber/Melinex foil
• Storage rack with cleaning tube

Technical data

• Drive: Compressed air or electric motor (depending on variant)
• Working width: 90 mm
• Suitable substrates: Paper, Foil
• Drawn down / pull‑off speed: up to 15 m/min

Technical specifications

• Model: AUTOMATIK‑K‑LOX‑ROLLER 622
• Working width: 90 mm
• Suitable substrates: Paper, Foil
• Drawn down / pull‑off speed: up to 15 m/min
• Incl.: chrome anilox rollers and wire‑wound rollers (various engravings)
