Rotogravure printing machine 628

for paperfor plastic filmmulti-color

Short description

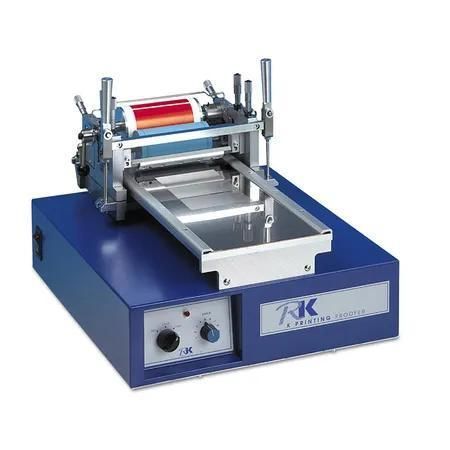

The PRINTING PROOFER 628 produces printed proofs for gravure and flexographic inks using electronically engraved plates. Adjustable drawdown speed up to 40 m/min and a 95 mm working width make it suitable for quality control samples, presentations, R&D and computer colour formulation.

Basic device
Press-on basic device with compressed-air drive. Delivered without pressure attachment; electrical drive variants available.

Technical description / Documents
Technical description and product PDF available for download (see product documentation).

Technical specifications

• Order number: 06280851
• Drive: compressed air (variants with 110/120 V or 220/240 V electrical drive available)
• Working width: 95 mm
• Suitable substrates: paper, film/foil
• Drawdown speed: up to 40 m/min (adjustable)
• Available variants:
• Pneumatic drive – without pressure attachment
• 220/240 V – without pressure attachment
• 220/240 V – Gravure system
• 110/120 V – Gravure system
• 110/120 V – Flexo system
• 220/240 V – Gravure/Flexo system
• Compressed-air drive – Gravure/Flexo system
• 220/240 V – Flexo system
• Compressed-air drive – Flexo system
• Compressed-air drive – Gravure system
• 110/120 V – Gravure/Flexo system
