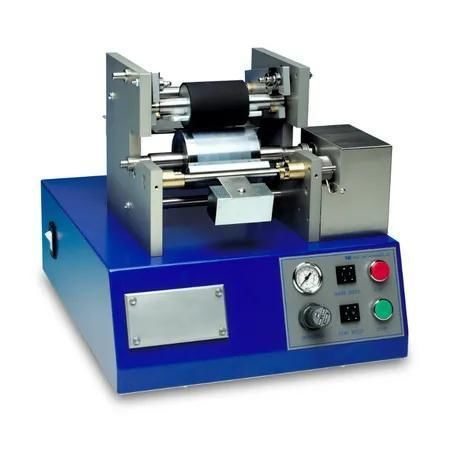

Paper printing machine PASTE INK PROOFER 629

for metalfor cardboard2-color

Overview
The PASTE INK PROOFER 629 is designed for fast, repeatable and highly accurate colour matching of litho, web offset and letterpress paste inks. Its dedicated ink-dispensing system removes the need to weigh or measure colour samples on the device, enabling efficient production of sample proofs for quality control, customer approvals and formulation data.

Scope of delivery

• Basic unit
• Compressor
• Triple laser-engraved ceramic standard anilox roller
• PVN nitrile transfer rubber roller (70 Shore)
• 100 test cards
• 2 spatulas
• 10 doctor blades
• 10 draining boards
• 1 set of tools
• Power supply: 230 V, 50 Hz

Technical data

• Drive: Electric
• Print width: 75 mm
• Maximum print size: 75 mm x 245 mm
• Substrate supported: sheet metal, rigid
• Substrate size: 124 mm wide x 300 mm long
• Weight: 40 kg
• Footprint: 400 mm x 400 mm
• Speed / Drawn down speed: 5 - 40 m/min
• Printing pressure: 0 - 150 N/cm
• Blanket roller: 70° Shore hardness, suitable for paste inks
• Services required: 110/120 or 230/250 V (delivered with 230 V, 50 Hz)

Order information
Order number: 06290151

Model / Specifications

• Model: PASTE INK PROOFER 629
• Drive: Electric
• Print width: 75 mm
• Maximum print size: 75 mm x 245 mm
• Substrate size supported: 124 mm x 300 mm
• Weight: 40 kg
• Footprint: 400 mm x 400 mm
• Speed: 5 - 40 m/min
• Printing pressure: 0 - 150 N/cm
• Blanket roller hardness: 70° Shore (suitable for paste inks)
• Standard accessories: compressor, triple laser-engraved ceramic anilox roller, PVN nitrile transfer rubber roller (70 Shore), 100 test cards, 2 spatulas, 10 doctor blades, 10 draining boards, set of tools
• Power supply options: 110/120 or 230/250 V (delivered with 230 V, 50 Hz)
