Paint roller ESIPROOF 627

engravingceramicprecision

Overview

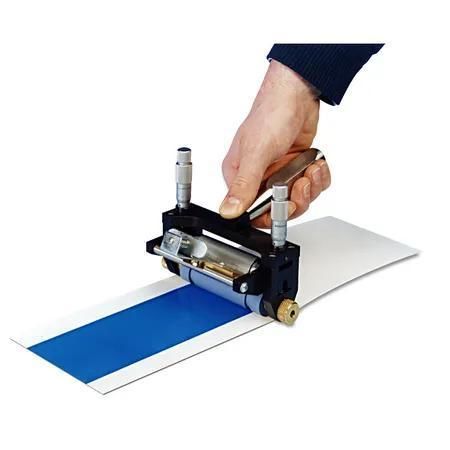

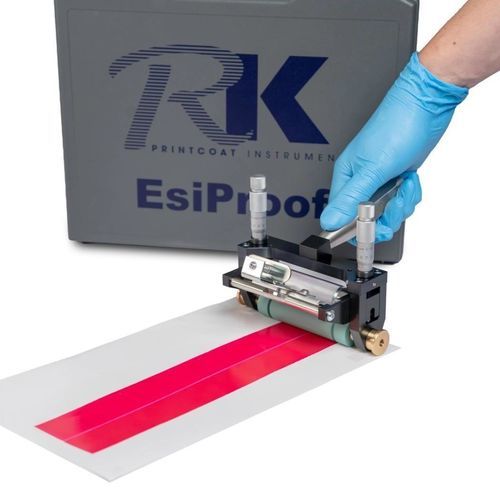

The ESIPROOF 627 gravure-print/flexographic laboratory instrument is a portable, hand-operated device for fast, economical half-tone printing proofs using flexographic or gravure inks. Other low-viscosity media can be applied using gravure or indirect gravure techniques. During gravure tests the substrate passes through the gap between the two rollers. The instrument is equipped with ceramic anilox rollers, a doctor blade and micrometer screws for roller pressure adjustment.

Key advantages

• Excellent repeatability for comparative proofs
• Laser-engraved anilox rollers (option: barcode engraving)
• Engraved roller pressure adjustable via micrometer screws
• Compact, easy-to-handle laboratory design
• Quick to clean
• Portable, hand-operated for bench-top use

Model / Order information
Model: ESIPROOF 627
Order number: 06270251
Available variants: Ceramic coated & laser engraved; Chrome-plated & QCH-engraved

Price & delivery
Net price: 2960.00 EUR (net price plus sales tax). Sale exclusively to commercial buyers. Delivery time: 3-4 weeks.

Technical data
Drive: Manual
Width: 70 mm
Substrate: Paper, foil, cartonboard

Technical specifications

• Drive: Manual operation
• Roller type: Ceramic anilox rollers (laser engraved)
• Doctor blade: included
• Pressure adjustment: micrometer screws for engraved roller pressure
• Width: 70 mm
• Applicable media: flexographic and gravure inks; other low-viscosity media
• Substrate compatibility: paper, foil, cartonboard
• Use case: half-tone printing proofs, gravure tests (substrate passes through gap between two rollers)
