Scratch hardness tester SmartPen

manualportablepencil

Product overview
The ERICHSEN SmartPen is a modular instrument for determining surface scratch resistance, metal marking tendency and the durability of printed markings depending on the test head used. It provides digital setting and display of the test force with 0.05 N resolution.

Background / applications
Traditional hardness test pencils (models 318, 318 S, 435, 435 S) are established methods to quantify paint film and coating hardness on flat or curved surfaces. The SmartPen modernises the method by offering precise, repeatable force control and portability for laboratory and on-site use.

SmartPen description

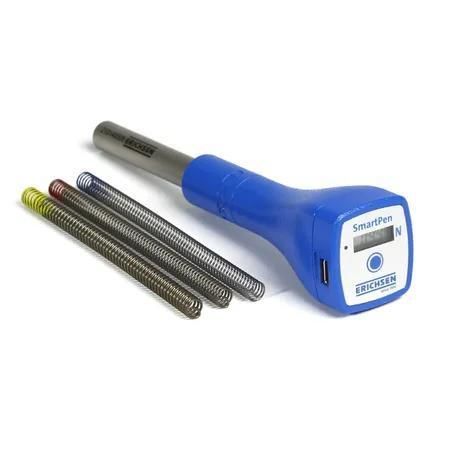

The ERICHSEN SmartPen is a modular hardness test pencil with digital force adjustment and readout. It is compatible with test heads and tools from the 318/435 series. The device is supplied without a test head unless otherwise specified. Existing ERICHSEN test heads can be reused with the SmartPen.

Scope of delivery

• ERICHSEN SmartPen
• 3 springs (0 - 3 N; 0 - 10 N; 0 - 20 N)
• USB-C charging cable
• Plastic case

Standards

• Van Laar
• Bosch
• ISO 1518
• Opel

Accessories (examples)
Available accessories and consumables include test heads for models 318/435, test tips (Bosch, Van Laar, Opel, ISO types), additional springs and calibration services.

Technical specifications

• Drive: Manual
• Display: Digital (resolution 0.05 N)
• Testing force: 3 force ranges: 0 - 3 N; 0 - 10 N; 0 - 20 N
• Scratch profile: Van Laar, Bosch, ISO, Opel
• Portable / Stationary: Portable
