Data analysis system QUANTIZ®

sampleautomaticcamera-based

Description

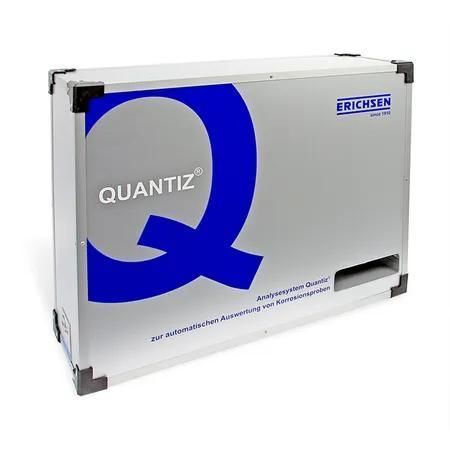

The QUANTIZ® analysis system provides automatic evaluation and documentation of corrosion samples using a camera-based imaging unit and optimized illumination. The lighting technology enables analysis at different contrast levels and allows evaluation of filiform corrosion without manual removal of affected paint layers. Evaluation parameters are adjustable by the user to meet specific test requirements.

Possible evaluations
Scribe delamination, edge corrosion, filiform corrosion assessment and surface corrosion.

Purpose and Application
QUANTIZ® is an integrated hardware and software system for automated evaluation and documentation of various corrosion samples; connects via USB cable to standard laptops/PCs (to be supplied by the user). Designed for laboratory testing and quality control workflows.

Scope of delivery

• Surface analysis system QUANTIZ®
• Hardware and software, dongle
• USB cable
• Main cable / power supply
• Operating instructions

Standards

• EN ISO 4628-8
• EN ISO 4628-10
• DIN EN ISO 21227
• EN ISO 21227-3
• EN ISO 21227-4
• PPG & Stellantis XScribe 16 SC / XScribe 16 SS
• EN ISO 2409
• SAE J 400
• ISO 4628-3
• ISO 4623-2
• ASTM D610-8
• ASTM D714
• GSB
• EQUALICOAT
• Volvo STD 1029, 5471
• Daimler PBODC361 (5,4)-2009
• TPJLR.52.561
• ISO 20567-1

Characteristics / technical specifications

• Dimensions: approx. 620 x 220 x 530 mm (L x D x H)
• FOV (camera): 190 x 110 mm (L x W)
• Weight, net: approx. 4.8 kg
• Power supply: 100 - 240 V AC, 50/60 Hz
• Max. sample width: 150 mm
• Portable / Stationary: Portable
