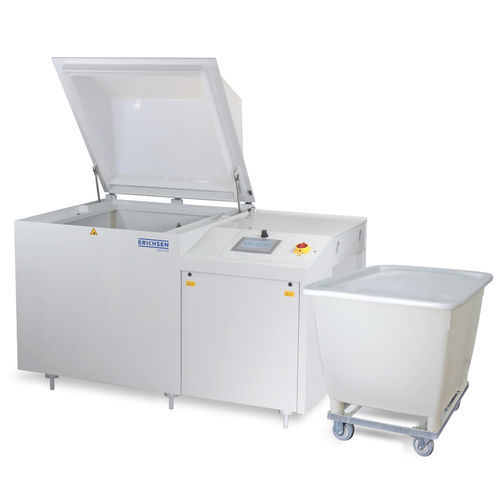

Climate chamber Model 608-Basic

humiditytemperaturesalt spray

The ERICHSEN Corrosion Testing Instrument Model 608 Basic is a compact, closed-unit cabinet designed for automated cyclic corrosion testing, including salt spray, condensation and varying-climate sequences.

Key features

• Closed test chamber made of impact-resistant, eco-friendly polypropylene.
• Automated PLC control (SIEMENS S7-200) with SIMATIC touch screen for programming and monitoring.
• Five standard test programs plus one user-program slot (program 6).
• Pneumatically operated top dome for ergonomic loading and safe specimen handling.
• Measured dosing with stepper/infinitely variable dosing pump and circulation pump for optimized spray solution use.
• External storage tank (approx. 200 L) for extended continuous testing.

Standards

• DIN 50958
• DIN 55991
• ISO 11503
• ASTM D2247
• BS 3900 Part F2
• DIN EN ISO 6270-2 CH

Technical specifications

• Test types: Condensation water tests; Continuous salt spray tests; Varying climatic tests; Dry heat (optional)
• External storage tank (salt solution): approx. 200 l (enables continuous testing up to ~1 week)
• Power supply (standard): 230 V / 1~, N, PE, 50 Hz
• Power supply for dry heat function: 400 V / 3~, N, PE, 50 Hz (optional)
• Control: PLC (SIEMENS S7-200) with SIMATIC touch screen; 5 standard programs 1 user program slot
• Specimen handling: Pneumatic top dome for ergonomic loading
• Temperature range: ambient up to 50 C
• Water connection pressure: 2 - 6 bar
• Compressed air connection: 5 - 7 bar
• Air consumption during ventilation: 15 L/min at 6 bar
