Compression force transducer Model 833

ringanalogfor testing machine

Description

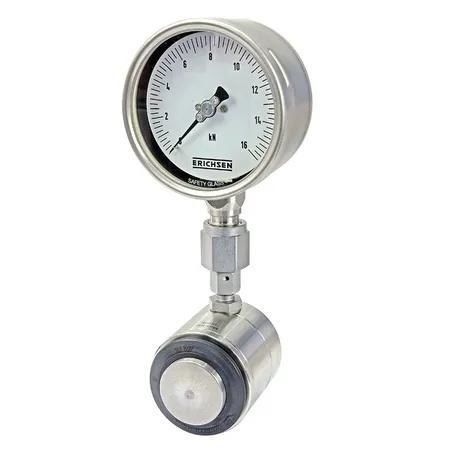

ERICHSEN hydraulic load cells provide a compact, economical method to measure forces by hydraulic transmission acting on the piston of the force transducer. The resulting hydraulic pressure is displayed directly on a scale in Newton. These hydraulic load cells are intended primarily for static or continuous applications. The increase time of the applied force (relative to rated load) should be at least 1 second to avoid damage to the dial gauge; shock loads can be mitigated by suitable throttles. All load cells are manufactured from stainless steel.

Fields of application
The Model 833 series is designed for continuous use and integration into machines, installations and systems of all kinds. Key features include an accurate dial gauge with zero-offset compensation and a large 100 mm diameter. With appropriate accessories the measured value can be displayed remotely. Readings can be transmitted to the PHYSIMETER ® 906 MC-E and 906 USB via a pressure transducer.

Design
The basic "A" version attaches the display unit directly to the load cell via a screwed connection. The extended "B" version connects the measuring instrument to the pressure gauge using a high-pressure hose or capillary tube.

Scope of delivery

• Model 833 (basic "A" version)
• Equipped as standard with tube throttle
• Manufacturer’s Test Certificate M

Technical data

• Measured Value: Force
• Effective Direction: Compression
• Measuring Principle: Hydraulic

Caractéristiques / spécifications techniques

• Model: Model 833
• Measured quantity: Force
• Effective direction: Compression
• Measuring principle: Hydraulic
• Material: Stainless steel
• Dial gauge diameter: 100 mm (with zero offset compensation)
• Typical use: Continuous/static applications; increased force time should remain constant for at least 1 second
