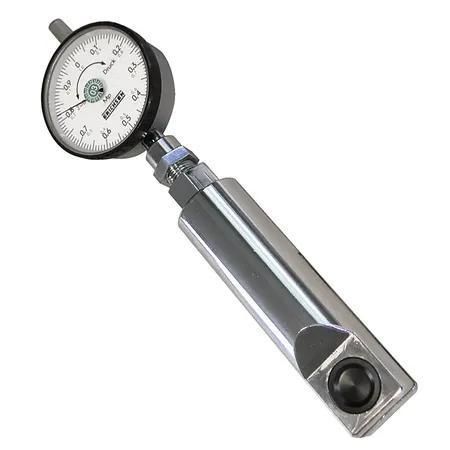

Tension/compression force transducer Model 835

canisteranalogsmall

Technical description
The Series 835 point force transducers are designed to measure static compression and tensile forces. They are mechanical instruments suitable for temporary force checks where straightforward measuring techniques with good accuracy are sufficient. The low-profile force application points allow use in confined spaces where larger instruments cannot be installed, for example to measure and monitor electrode pressures on spot welding machines.

Design and function
Forces applied to the contact points deform a slot, causing a precision-ground measuring needle with a conical sensor to move and actuate a dial gauge indicator. Compression forces are displayed clockwise; tensile forces are shown counter-clockwise.

Special versions
Customized variants can be supplied for specific applications, such as measuring tension on continuously running wires or fitted with tension shackles for overhead-line installation at prescribed strain values.

Scope of delivery

• Point force transducer, Model 835
• Manufacturer’s Test Certificate M

Technical specifications

• Available test forces: 500 N, 2 kN, 5 kN, 10 kN
• Measuring principle: Mechanical
• Effective direction: Compression
• Display device: Precision dial gauge, mountable in different orientations; dial plate rotatable for zero offset
• Finish: High-gloss chromium-plated
• Measured value: Force
• Weight (net): approx. 0.45 kg
• Measuring uncertainty: ± 2 %, relative to end value

Key features

• Compact, low-profile mechanical transducer for static force measurement
• Precision dial indicator for straightforward readout and zero adjustment
• Available custom versions for specialized measurement tasks
