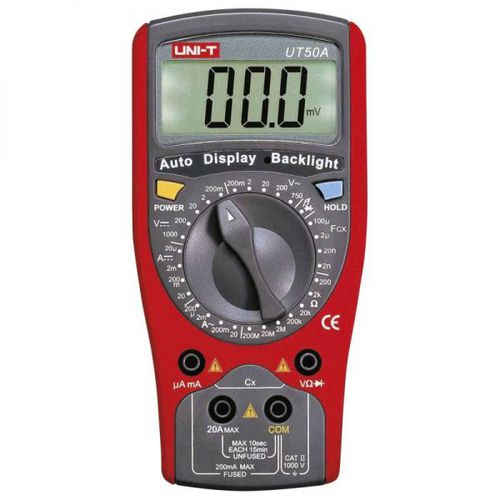

Digital multimeter UT 50A
portable1000 V20 A

digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
20 A
Additional features
frequency
Max DC voltage

Min.: 0 V

Max.: 1,000 V

Max AC voltage

Min.: 0 V

Max.: 750 V

Max DC current

Min.: 0 A

Max.: 20 A

Max AC current

Min.: 0 A

Max.: 20 A

Max frequency measure

50 Hz, 60 Hz

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 1,000 °C
(1,832 °F)

Length

165 mm
(6.5 in)

Width

80 mm
(3.15 in)

Height

38.3 mm
(1.51 in)

Weight

275 g
(9.7 oz)

Description

• resistance: 200Ω/2kΩ/200kΩ/2MΩ/20MΩ • inductance 2mH/20mH/200mH/20H • capacity: 100 mikro F • manual range • diode test • data hold • continuity buzzer • low battery display • temperature measurement in Celcius degrees (from -40⁰C to +1000⁰C) • sleep mode • full icon display • automatic off • LCD backlight • LCD size: 59×25 mm • power: battery 9V (6F22)
