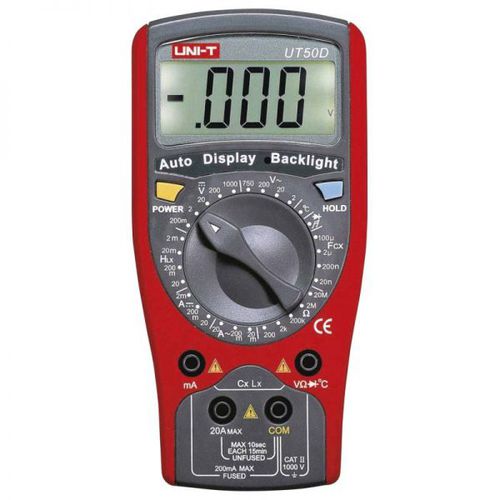

Digital multimeter UT 50Dportable1000 V20 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 20 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 750 V
Min.: 0 V
- Max DC current
Max.: 20 A
Min.: 0 A
- Max AC current
Max.: 20 A
Min.: 0 A
- Max frequency measure
Max.: 20 kHz
Min.: 0 kHz
- Process temperature
Max.: 1,000 °C
(1,832 °F)Min.: -20 °C
(-4 °F)- Length
165 mm
(6.5 in)- Width
80 mm
(3.15 in)- Height
38.3 mm
(1.51 in)- Weight
275 g
(9.7 oz)
Description
• temperature measurement in Celcius degrees (from -20⁰C to +1000⁰C)
• resistance: 200Ω/2kΩ/200kΩ/2MΩ/20MΩ
• inductance 2mH/20mH/200mH/20H
• capacity: 100 mikro F
Features:
diode test, continuity buzzer, data hold, sleep mode, low battery indication
• power: 9V (6F22)
• LCD size: 59×25 mm
