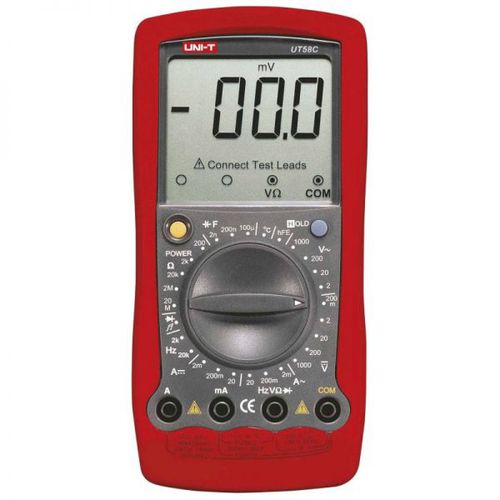

Digital multimeter UT58C
portable1000 V20 A

digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
20 A
Additional features
frequency
Applications
industrial
Other characteristics
AC/DC
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 750 V

Min.: 0 V

Max DC current

Max.: 20 A

Min.: 0 A

Max AC current

Max.: 20 A

Min.: 0 A

Max frequency measure

Max.: 20 kHz

Min.: 0 kHz

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: -20 °C
(-4 °F)

Length

179 mm
(7.05 in)

Width

88 mm
(3.46 in)

Height

39 mm
(1.54 in)

Weight

350 g
(12.35 oz)

Description

• resistance: 200Ω/2kΩ/200kΩ/2MΩ/200MΩ • capacity: 0~20 μF • inductance: 0~20 H • manual range • diode test • transistors measurement • data hold • continuity buzzer • sleep mode • low battery display • full icon display • automatic off • LCD backlight • power: battery 9V (6F22) • LCD size: 60×54 mm
