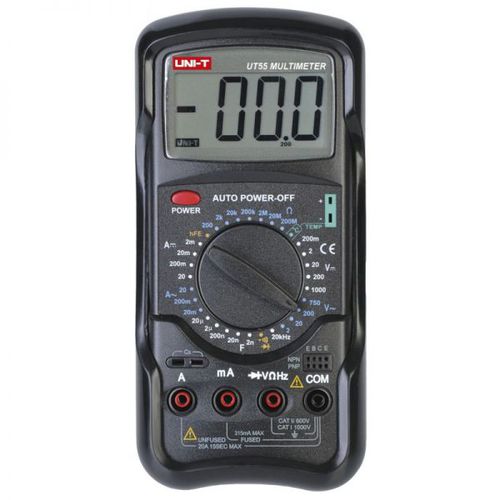

Digital multimeter UT 55
portable1000 V20 A

digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
20 A
Additional features
frequency
Applications
industrial
Other characteristics
AC/DC
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 750 V

Min.: 0 V

Max DC current

Max.: 20 A

Min.: 0 A

Max AC current

Max.: 20 A

Min.: 0 A

Max frequency measure

Max.: 20 kHz

Min.: 0 kHz

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: -20 °C
(-4 °F)

Length

190 mm
(7.48 in)

Width

88 mm
(3.46 in)

Height

34 mm
(1.34 in)

Weight

560 g
(19.75 oz)

Description

• resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ • frequency: 20kHz • capacity: 20 mikro F • manual range • diode test • continuity buzzer • temperature measurement in Celcius degrees (from -20⁰C to +1000⁰C) • sleep mode • transistor measurement • power: battery 9V (6F22) LCD size: 33×65 mm
