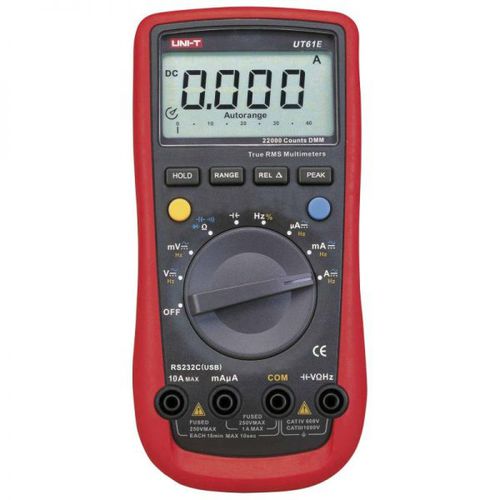

Digital multimeter UT61E
portable1000 V10 A

digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
10 A
Additional features
frequency
Applications
industrial
Other characteristics
AC/DC
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 750 V

Min.: 0 V

Max DC current

Max.: 10 A

Min.: 0 A

Max AC current

Max.: 10 A

Min.: 0 A

Max frequency measure

Max.: 220 MHz

Min.: 0 MHz

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: -20 °C
(-4 °F)

Length

180 mm
(7.09 in)

Width

87 mm
(3.43 in)

Height

47 mm
(1.85 in)

Weight

370 g
(13.05 oz)

Description

• resistance: 200Ω/2kΩ/200kΩ/2MΩ/220MΩ • capacity: 0~220 mF • frequency: 0~220 MHz • fill factor: 0.1~99.9% • automatic and manual change of measuring ranges • diode test • data hold • continuity buzzer • maintenance of reading • RS232C • sleep mode • low battery display • full icon display • automatic off • LCD backlight • power: battery 9V (6F22) • LCD size: 65×43 mm
