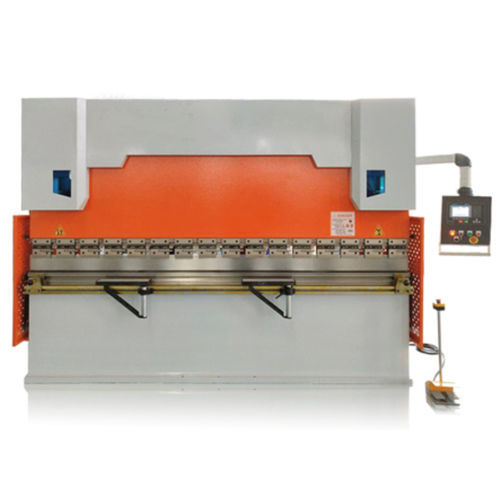

Hydraulic press brake WC67Y/K-40/2500

CNC2-axis

1. The E210-controlled CNC hydraulic bending machine provides a complete solution for the 2-axis traditional bending machine application. Provides versatile solutions for axis control of press beams and back pressure gauges as well as flexible I/O configurations based on state-of-the-art electronics. With its bright LCD display, it provides clear and simple control. Digital programming, angles at hand, tool and material parameters, can be summarized directly in the form. 2. The bending parameters can be selected by user-friendly cursor operation. Axis control supports servo control, 2-speed AC control, and inverter control. Depending on the application, you can choose both sides. 3. Positioning and one-sided positioning with spindle correction. Clear and simple operation can be achieved by tabulating the table on a bright LCD screen. Digital programming is user-friendly and guides the operator through all programming possibilities. STANDARD EQUIPMENTS √ Height-adjustable and movable sliding front support arm. √ The top and bottom tools are surface hardened by special treatment. √ Netherlands DELEM E210 CNC system. √ X-axis servo motor drive, timing belt + ball screw drive, high repeat positioning accuracy. √ 3 can fine-tune the fingers. √ Optional metric and inch measurement, Chinese and English display. √ Foot pedals are produced according to CE standards and are suitable for single and multiple bends. √ Cylinder and top beam cover √ Pre-adjust electrical requirements based on customer's geographic area. ▇ OPTIONAL EQUIPMENTS √ Special strokes and throat depth provide additional advantages for deep bends. √ CNC system E200, E300.
