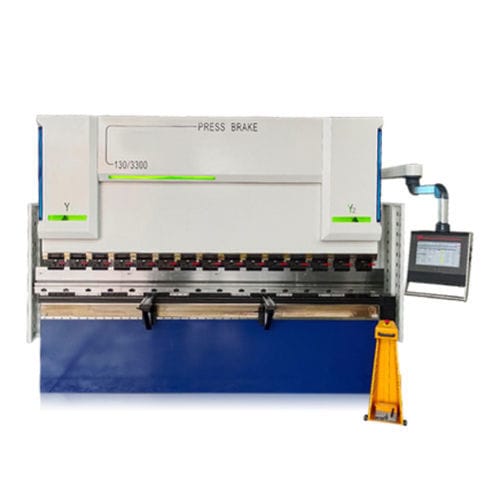

Electro-hydraulic press brake

CNC6-axis

▪ Integral welding processing structure ▪ International famous brand electro-hydraulic servo valve and grating ruler form closed loop control mode ▪ High slider position feedback accuracy, accurate and smooth operation, good synchronization performance, bending accuracy, high slider repeat positioning accuracy. ▪ Rear baffle material can be according to customer demand to adopt more complete function of the rear baffle material shaft of the rear baffle material mechanism. ▪ The hydraulic system adopts integrated control system, which reduces the installation of pipelines, eliminates oil leakage, ensures the working stability of machine tools, and makes the appearance scientific and beautiful. ▪ Hydraulic deflection automatic compensation mechanism, eliminate the impact of slider deformation on the quality of the workpiece, CNC system automatically adjust the amount of compensation, easy and accurate operation. ▪ CNC system using the Netherlands DELEM, Italy ESA, Switzerland CYBELEC and other well-known brands dedicated CNC bending machine system. Standard configuration specification: ▪ Hydraulic system: BOSCH, Germany ▪ Servo motor and drive: nanjing easton ▪ Grating ruler: HEIDENHAIN, Germany, GIVI, Italy ▪ Ball screw and linear guide: HIWIN, Taiwan ▪ Main electrical components: French SCHNEIDER ▪ Bench compensation: hydraulic compensation or mechanical compensation ▪ Simple adjustable pre-moving bracket with guide rail Working principle of hydraulic deflection compensation mechanism 　　In the process of bending, the Angle of the bending workpiece is inconsistent due to the certain amount of deformation between the slider and the workpiece,
