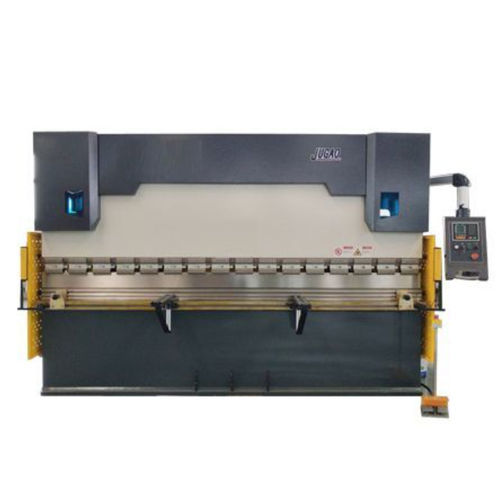

Hydraulic press brake WC67Y

CNC

1. Hack gauge and block control. Control for general AC motors, Frequency inverter. 2.Intelligent positioning. stock counter. Holding/decompression time setting. 3.Program memory of up to 40 programs up to 25 steps per program. 4.One side positioning. retract function. one key backup/restore of parameters. mm/inch. English Language operation. ▇ STANDARD EQUIPMENTS √ Height-adjustable and movable sliding front support arm. √ The top and bottom tools are surface hardened by special treatment. √ The Netherlands DELEM E21 NC system can store 24 workpiece programs. √ X-axis Taiwan Shihlin Inverter, stroke 800 mm. Ball screw, timing belt drive. Repeat positioning accuracy ±0.1mm. √ 410 mm throat depth. √ 3 rear cover fingers that can be adjusted up and down,, welded beam, heat treatment process, no deformation for long-term use. √ Metric and inch measurements. √ The pedals have an emergency stop button that meets CE requirements and is suitable for single foot pedals and multiple corners. √ Fully enclosed integral top beam cover. √ Pre-adjust electrical requirements based on customer's geographic area. ▇ OPTIONAL EQUIPMENTS √ Special strokes and throat depth provide additional advantages for deep bends. √ CNC system E200, E210, E300. √ Special rear cover fingers can be added on the optional backgauge stroke. √ Hydraulic oil heating and cooling. √ Customized table width and bottom tool V opening. √ Optional top and bottom tool lengths are different. √ Box and pole bent special tools. √ WILA top and bottom tool clamping systems.
