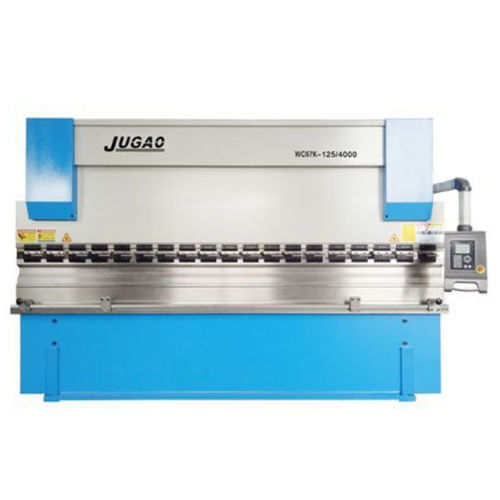

Hydraulic press brake WC67Y/K-63/2500conventional
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- conventional
- Press force
Min.: 400 kN
Max.: 5,000 kN
- Folding length
Min.: 1,600 mm
(63 in)Max.: 6,000 mm
(236.2 in)- Engine power
Min.: 4 kW
(5.44 hp)Max.: 37 kW
(50.31 hp)- Machine length
Min.: 1,750 mm
(69 in)Max.: 6,100 mm
(240 in)- Machine width
Min.: 1,350 mm
(53.15 in)Max.: 2,180 mm
(85.83 in)- Machine height
Min.: 1,900 mm
(74.8 in)Max.: 3,580 mm
(140.94 in)- Maximale stroke
100 mm, 120 mm, 200 mm, 250 mm
(4 in, 5 in, 8 in, 10 in)
Description
1. The DA-41s control provides a complete solution for conventional Press brake applications for 2 axes. Offering a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on the state of the art electronics.
2. With its bright LCD display a clear and easy control is offered. The numerical programming, having angle, tool and material parameters on hand, can be done in a direct table overview. The bend parameters can be selected via a user-friendly cursor manipulation.
3. With its tabular navigation on the bright LCD screen a clear and easy operation is offered. The numerical programming is user-friendly and guides the operator through all programming possibilities.
▇ STANDARD
√ LCD display
√ 4,7” monochrome
√ High-quality foil cover with integrated membrane switches
√ Product memory of up to 100 programs
√ Number of program steps 25
√ Tool library
▇ DA-41s FEATURING
√ Bright LCD display
√ Beam stop control
√ Backgauge control
√ Angle programming
√ Tool programming
√ Retract function
√ Up to 100 programs
√ Up to 25 bends per program
