Hydraulic press JL21 seriespneumaticframeautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, pneumatic
- Structure
- frame
- Control
- automatic, PLC-controlled
- Other characteristics
- fixed, digital
- Force
Min.: 250 kN
Max.: 2,500 kN
- Stroke
Min.: 3 mm
(0.118 in)Max.: 220 mm
(8.661 in)- Hydraulic pump power
Min.: 3 kW
Max.: 22 kW
Description

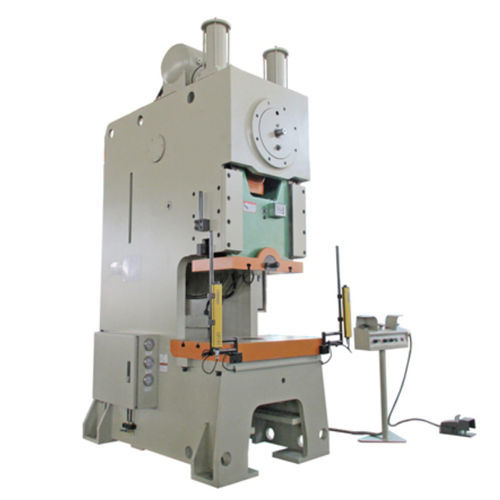

JL21 series open front fixed bed press with adjustable stroke
1. Steel welded frame with high intensity.
2. Combined dry pneumatic friction clutch.
3. Cylinder type with adjustable stroke.
4. Slide with eight-face guide.JL21-25 with six-face guide.
5. Hydraulic overload protector.
6. Automatic oil circuiting lubrication. JL21-25 with electrical grease lubrication.
7. JL21-45 superior:electrical die height adjustment with digital display.
8. Lifting balance cylinder.
9. Improted dual solenoid valve.
10. Integrated interface (electrical cam included).
11. PLC of international brand.
12. Button,AC contactor,air circuit breaker of international brand.
13. Optional:air cushion(air bag or cylinder type),automatic feed shaft device,light curtain,slide knockout device,automatic devices.
