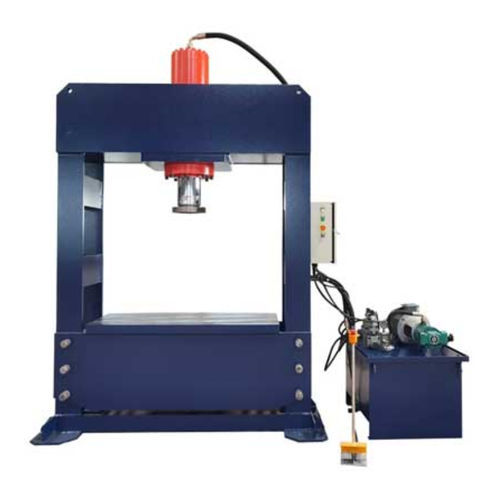

Hydraulic press 20TA impact
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Other characteristics
- impact
- Stroke
200 mm, 240 mm, 300 mm
(7.874 in, 9.449 in, 11.811 in)- Table width
360 mm, 400 mm, 500 mm
(14 in, 16 in, 20 in)- Table length
400 mm, 450 mm, 460 mm, 500 mm
(16 in, 18 in, 18 in, 20 in)- Max. pressure
Min.: 18 MPa
Max.: 32 MPa
- Return speed
Min.: 8 mm/s
Max.: 25 mm/s
- Hydraulic pump power
2.2 kW, 3 kW, 5.5 kW
- Weight
Min.: 240 kg
(529 lb)Max.: 1,200 kg
(2,646 lb)
Description
1. Body structure--- Three beams and four columns structure,ensuring stability and power equality.Three beams are welded with tempering treatment.
2. Cartridge valve integrated hydraulic system: long service life, less hydraulic impact and reduce leak point .
3. Hydraulic system equipped with pre-release device to reduce hydraulic force impact.
4. Operation button centralized control and equipped with adjusting and semi-auto model.
5. Worktable can move up and down, greatly expanding the machine opening and closing height, more convenient to use.
6. Has the small volume, the pressure is high, the structure is simple, the weight is light. High efficient, convenient and safe to operate.
